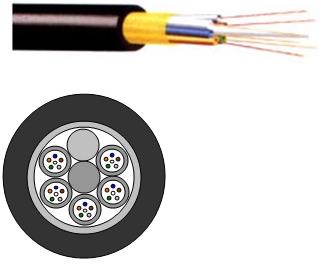

120111. GYFTY, non-metal loose tube layer-stranded

Special two-layer tube technology for good flexibility and bend-resistant property, Water-blocking compound filled up and all cross section double water-blocking
Detailed description
Description:

Special two-layer tube technology for good flexibility and bend-resistant property
Water-blocking compound filled up and all cross section double water-blocking
Non-metal structure good electromegnectism resistant property,suitable for electric field and some areas where thunders usually happen
Excellent water-proof layer, good moisture resistance

Application:

Suitable for ducts and aerial
Long distance communication system
Local area network system
Subsriber network system
In the vicinity of power lines or plants g distance communication system

Mechanical & Environmental characteristics:

ITEM CHARACTERISTICS
Operation temperature -20℃~+60℃
Storage temperature -40℃~+60℃
Sheath Material P: PE; L: LSZH; or other

Part
Number
Fiber
Count
Outside
Diameter
(mm)
L.T
Diameter
(mm)
Cable
Weight
(kg/km)
Tensile Load
Crush Load
Bend Radius
S (N)
L (N)
S (N)
L (N)
S (mm)
L (mm)
GYFTY04XXP-BK
4
10
5
95
1500
600
1000
300
20D
10D
GYFTY06XXP-BK
6
10
5
95
1500
600
1000
300
20D
10D
GYFTY08XXP-BK
8
10
5
90
1500
600
1000
300
20D
10D
GYFTY12XXP-BK
12
10
5
95
1500
600
1000
300
20D
10D
GYFTY24XXP-BK
24
10
5
95
1500
600
1000
300
20D
10D
GYFTY36XXP-BK
36
10
5
95
1500
6000
1000
300
20D
10D
GYFTY48XXP-BK
48
11.5
6
116
1500
6000
1000
300
20D
10D
GYFTY72XXP-BK
72
11.5
6
116
3000
1000
1000
300
20D
10D
GYFTY96XXP-BK
96
13.6
8
149
3000
1000
1000
300
20D
10D
GYFTY144XXP-BK
144
17.5
12
267
3000
1000
1000
300
20D
10D

Note: GYFTY denotes outdoor cable type;XX denotes fiber type (09: SM; 62: 62.5/125um; 50: 50/125um;OM3) ; P denotes PE sheath( L: LSZH) ; BK denotes black outer sheath.

Optical Characteristics:

Glass Type
62.5/125um
62.5/125um
50/125um
50/125um
50/125um
SM(G652.D)
Grade B
Grade A
Grade B
Grade A
OM3
P/N Code(X)
62B
62A
50B
50A
OM3
09
Operating
Wavelength
850/1300nm
850/1300nm
850/1300nm
850/1300nm
850/1300nm
1310/1550nm
Bandwidth
(MHz.km)
160/500
200/600
200/500
400/800
1500/500
_
Attenuation
(dB/km)
3.50/1.50
3.00/1.00
3..50/1.50
3.00/1.00
2.70/0.80
0.45/0.30
Link Length
For 1000M
200/500
275/550
500/550
550/550
1000^4/600
_
Link Length
For 10G
——
——
——
——
300/
_

Fiber Colour Code:

BL- Blue BR- Brown RE- Red PU- Purple
OR- Orange GY- Grey BK- Black PI- Pink
GR- Green WH- White YE- Yellow AQ- Aqua

Note:



1000



1. The colour arrangement of optical fiber is specified in the fiber colour code
2. S: short term; L: long term; L.T: loose tube
3. Crush load: N/100mm; D: cable diameter
4. GY: outdoor cable; F: FRP central strength member ; T: jelly compound; Y: PE outer sheath
