120307. ONU Access Box (FTTB)
  • 120307. ONU Access Box (FTTB)

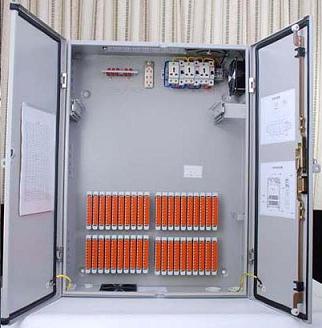

120307. ONU Access Box (FTTB)

ONU Access Box widely used for Passive Optical Network (PON) such as FTTB+xDSL, FTTB+LAN, providing customers with voice and data for internet access. The box is usually installed in corridors and weak current well in office buildings and apartments, providing fixing, protection, distribution of fiber, temperature control, power supply and lightning protection, increasing the bandwidth, flexible installation and low-cost operation, serving as the main equipment in PON system in telecommunication operation and speeding up the broadband access network. We have been concentrating on the development and changes of the industry for years and are familiar with the operating preference of each operator, providing considerable reference for the design, manufacturing, testing and acceptance of ONU access box. We are providing a variety of ONU access boxes which perfectly match with mainstream ONU access devices as Huawei 5620/26 series, MA5610/5616 series, ZTE ZXDSL9806 series, Fibrehome AN5006 series and the others as well.
Detailed description

Features
* Indoor wall mounted or built-in installation, outdoor wall mounted installation
* Operating temperature: -40℃~60℃
* Temperature control unit ensure the stability
* Reasonable space design
* All operation in the front

Ordering Guide

NO. Type Dimension
H*W*D(mm)
Operating
Environment
Installation Description
1 SPX2-01BN1a 640*590*130 Indoor Buried in wall Sheet metal box, double door, 1U device space, 2U/200 lines distribution space, natural heat-dissipation
2 SPX2-01BN2a 740*640*160 Indoor Buried in wall Sheet metal box, double door, 2U drawable device space, 4U/400 lines distribution space, fan cooling
3 SPX2-01BN3a 890*690*180 Indoor Buried in wall Sheet metal box, double door, 3U drawable device space, 7U/128 inside + 150 outside lines distribution space, fan cooling
4 SPX2-01BN1b 600*550*130 Indoor Wall mounted Sheet metal box, double door, 1U device space, 2U/200 lines distribution space, natural heat-dissipation
5 SPX2-01BN2b 700*600*160 Indoor Wall mounted Sheet metal box, double door, 2U drawable device space, 4U/400 lines distribution space, fan cooling
6 SPX2-01BN3b 850*650*180 Indoor Wall mounted Sheet metal box, double door, 3U drawable device space, 7U/128 inside + 150 outside lines distribution space, fan cooling
7 SPX2-01BW1b 750*600*225 Outdoor Wall mounted,
Hooping
Sheet metal box, single door, 3U drawable device space, 5U/400 lines distribution space, fan cooling
8 SPX2-01BW2b 950*650*225 Outdoor Wall mounted,
Hooping
Sheet metal box, single door, 3U drawable device space, 9U/192 inside + 200 outside lines distribution space, fan cooling
9 SPX2-01BW3b 950*650*425 Outdoor Wall mounted,
Hooping
Sheet metal box, single door, complete 19'' installation, 19U device space, fan cooling
