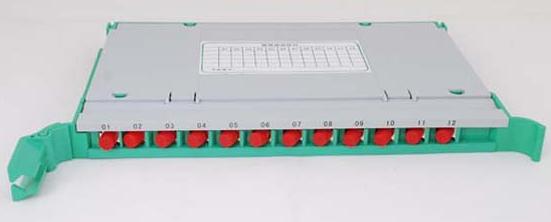

120314. Fiber Optic Distribution Unit Box

Whole modular design as well as fully proved operation
Detailed description

Features

Whole modular design as well as fully proved operation

Integrate welding and fiber distribution, maximize densification

Apply to both 19’’ and 23’’ rack

Apply to ribbon optical cable and non-ribbon optical cable

FC, SC adapter installed in a fastening way

The 30° angle formed by the adapter and connecting modules ensures the curvature radius of patch cord, which could prevent damages from human eyes.

Cables and pigtails possess a storage more than 2m

The outer shield keeps fibers off accidental damages

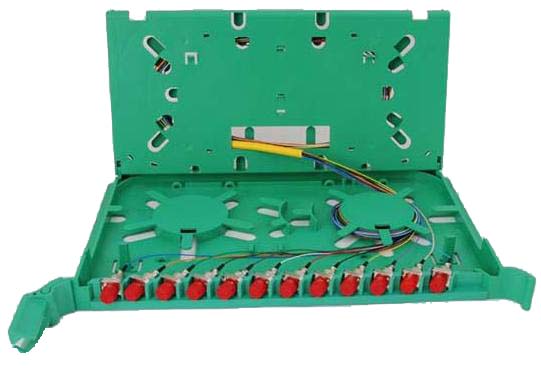

The connecting modules can be removed from the device and offers convenient operation

Ordering Guide

NO. Type Dimension (mm) H*W*D Description
1 19YT-12a 1U*482*280 12 Ports,Frame Unit
2 19YT-24a 2U*482*280 24 Ports,Frame Unit
3 19YT-48a 3U*482*280 48 Ports,Frame Unit
4 19YT-72a 4U*482*280 72 Ports,Frame Unit
5 19YT-12b 1U*482*280 12 Ports,Frame Unit
6 19YT-24b 2U*482*280 24 Ports,Frame Unit
7 19YT-48b 3U*482*280 48 Ports,Frame Unit
8 19YT-72b 4U*482*280 72 Ports,Frame Unit
