120703. FC Splicing Field-Assembly Connector

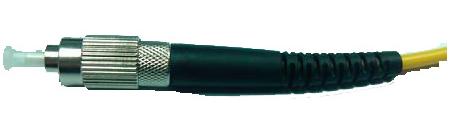

FC Splicing Field-Assembly Connector
Detailed description
Features
Splicing increases the mechanic strength and decreases insertion loss. Return loss is greater than 55 dB (APC).
Model: SC, FC
Insertion Loss: ＜ 0.3 dB
Return Loss: ≥ 45 dB (PC) ≥ 55 dB(APC)
Tensile Strength: ≥ 6 kg
| Optical Performance | Insertion Loss | 1310nm | ≤ 0.3 dB | NA |
| Return Loss | 1310nm | NA | ≥45dB(PC), ≥55dB(APC) | |
| Mechanical Performance | Interchangeability | Random Connection | △＜0.2 dB | △＜5 dB |
| Vibration | 5-50Hz, 1.5mm, Vibration Amplitude | △＜0.2 dB | △＜5 dB | |
| Tensile Strength | 6kg | △＜0.2 dB | △＜5 dB | |
| Environmental Performance | High Temperature | +85℃, 96H | △＜0.2 dB | △＜5 dB |
| Low Temperature | -40℃, 96H | △＜0.2 dB | △＜5 dB | |
| Temperature Cycling | -40℃~ +85℃ 5Cycles | △＜0.2 dB | △＜5 dB | |
| Humidity | +40℃, 90%~95%, 96H | △＜0.2 dB | △＜5 dB |
