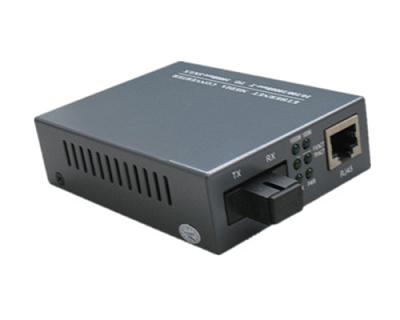

WTB-C2100LX Series of single mode single fiber
10/100/1000Mbps Ethernet Electrical to Optical Bidi media converter
Description:
The WTB-C2100LX Series Ethernet Bidi media converters with external power supply are designed to transmit and receive 10/100/1000Mbps data over optical fiber. The electrical interface will Auto-Negotiate to a 100 Mbps or 1000Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000 Mbps Ethernet rate. Both are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status.
Applications:
Access Control Systems
Building and Environmental Control Systems
Tamper Switch
10/100/1000 Mbps Ethernet Media Converter
High Speed Computer Links
Features:
-10/100/1000Mbps Ethernet
10/100/1000 BASE-T/TX electrical port
1000 BASE-SX/LX optical port
-Electrical port supports Auto-Negotiation for 100 Mbps or 1000 Mbps, full duplex or half duplex data.
-Optical port supports 1000 Mbps full duplex data
-Automatic MDI/MDI-X crossover
-Distances up to 120KM with optional SFPs
-Designed to meet full compliance with the environmental requirements(ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection)
-Voltage transient protection on all power and signal input. Output lines provides unconditional protection from power surges and other voltage transient events
-No in-field optical adjustments required
-LED Indicators
-IEEE 802.3 compliant
-Lifetime Warranty
Specifications
Data Electrical & Mechanical
Data Interface: Ethernet Operating Voltage: AC100V~260V
Data Rate: 10/100Mbps Power Dissipation: ≤ 5W
IEEE802.3Compliant Size: 94mm(L)*70mm(W)*26mm(H)
Full Duplex or Half Duplex Electrical
Environmental:
MTBF: >100, 000 hours Operating Temp: 0C to +75C
Storage Temp: 0C to +85C Relative Humidity: 0% to 95% (non-condensing)
Ordering Information:
Part Number Description
WTB-C2100LX20B1/B2 Single-mode 10/100/1000M 20KM SC External Power Supply
WTB-C2100LX40B1/B2 Single-mode 10/100/1000M 40KM SC External Power Supply
WTB-C2100LX60B1/B2 Single-mode 10/100/1000M 60KM SC External Power Supply
WTB-C2100LX80B1/B2 Single-mode 10/100/1000M 80KM SC External Power Supply
Note: Product specifications are subject to change without notice.
|
