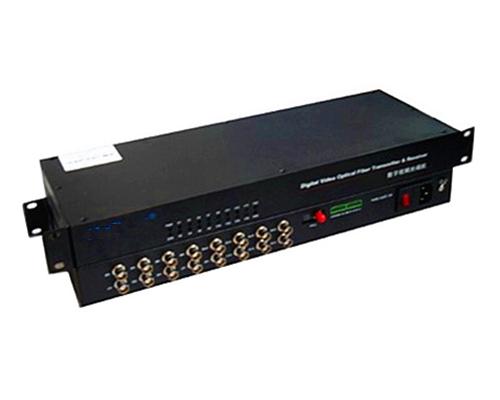

121201. 16ch video +1ch data Optical Video Transceiver

16CH video Tx + 1CH RS 485 data Rx Optical Video Transmitter and Receiver

Detailed description

Description:

16CH video Tx + 1CH RS 485 data Rx Optical Video Transmitter and Receiver
Key features

Robust metal casings
Thunder-proof solution
Low optical link loss max 30dB
Without EMI, RFI and ground loop
Bi-di transmission on 1 fiber with WDM
Hot plug-and-play with switch power supply
Available in standalone and cabinet systems

Overview
OM610-16V1DWT/R optical video transmitter and receiver transmit 16ch video and 1ch RS485 data signals on optical fiber. On 9/125um Single mode fiber its working distance is 20Km to 80KM while on multimode fiber it's 1Km.
Specification

Optical

Wavelength1310nm/1550nm

Output Power-8~3dBm

Optic fiberSingle mode (9/125um) 20Km, multimode (50/125um) 1Km, ( 62.5/125um) 500m

Receiving sensitivity-30dBm

InterfaceFC standard, ST/SC optional

Video

Channel Quantity16ch from camera to control center

Compatible SystemsNTSC/PAL/SECAM

Impedance/VoltageBNC 75Ω (unbalanced) / 2.0Vp-p

Differential Gain< ±1%

Differential Phase< ±1

S/N ratio>60dB(weighting)(8 bit)

InterfaceBNC

Data

Channel Quantity1, from control center to camera

Data ProtocolRS485

Bandwidth0~300kbps

Error Rate10-9

InterfacePhoenix terminal

Electrical. Environmental. Mechanical

Operating VoltageAC220V

Operating Temperature-35~+75

Storage Temperature-45~+85

Humidity0~95%non-condensing

Dimension485(L)*237(W)*45(H) mm, 19"1u

Weight2.24kg/piece (Net Weight), 5.58kg/pair(Gross Weight)

Applications

Express way security protection and toll station system
City traffic monitoring system
Building and campus monitoring system
Industrial monitoring (airport, chemical plant, railway, etc.)
Military monitoring (frontier defense, national defense)
Electronic power oil field, TV station program broadcasting
Gymnasium (live video and audio transmission)
