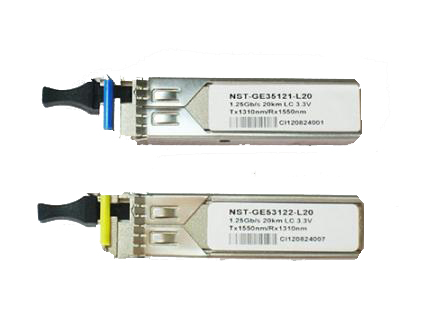

121302. 1.25g Bi-Directional SFP Optical Transceiver

SFP Transceiver, Single Mode, 1310T/1550R, 1.25G, long distance 20km, single LC connector.

Detailed description

Description:

1.25g 20km 1310t/1550r Bi-Di SFP module
Model: SFP-GE-LX-SM1310-BD
Detailed Product Description:
SFP, SM, 1310T/1550R, 1.25G, long distance, 20km, single LC connector.
Features
1 Support 1000BASE-T operation in host systems with SGMII interface.
2 Up to 1.25Gbps bi-direction data links.
3 Hot-pluggable SFP footprint.
4 Fully metallic enclosure for low EMI.
5 Low power dissipation (1.05 W typical).
6 Compact RJ-45 connector assembly.
7 100m transmission over unshielded twisted pair(UTP) Category 5 cable.
8 Support UL and RoHS
9 Access to physical layer IC via 2-wire serial bus.
Application
1 LAN 1000Base-T(10/100/1000Base-T)
2 Switch to switch interface
3 Router/Server interface.
