121401. DVI to Fiber Extender with 4LC

DVI to fiber extender --used for video conference,support distance up to 500M HD transmission --support Auto-EDID programming

Detailed description

Description:

Detailed introduction

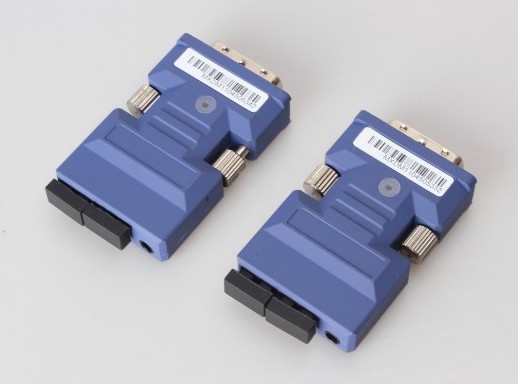

DVI fiber transceiver is a high-speed transmission equipment which is used solve DVI image signal over long distance or more longer distance transmission. DVI fiber transceiver including a transmitter(NF-201SB-T) and a receiver (NF-201SB-R), it will transfer R, G, B signal and BCLK signal over four single mode fiber or multi-mode fiber.
Technical indicator

DVI HD video parameters
Interface Format	DVI 1.0
Physical Interface	DVI-I Hole socket
Interface Quantity	Transmitter: 1-input; Receiver: 1-output
Video Definition(single line)	SVGA: 800× 600@60Hz; WXGA: 1280× 800@60Hz UXGA: 1600x1200@60Hz; HDTV: 1080P 1920x1080@60Hz
Video Color Depth	8/10/12 bit
Video pixel Clock	25-165MHZ
Video Bandwidth	5.4Gbps
Video Difference Level	800-1200mVp-p, typical
Video Differential Impedance	100Ω
DDC Standard	DDC2/EDID 1.0/2.0
DDC Processing Mode	Read and display by the transmitter
Optical parameters
Transmitter	Interface Type: LC*4
Transmitter	Signal Format: 1310nm, single mode/multimode fiber, optical transmitting power: -3 - -8dbm
Receiver	Interface Type: LC*4
Receiver	Signal Format: 1310nm, single mode/multimode fiber, optical receiving sensitivity: -30dbm
Size	L× W× H: 63mm× 42mm× 15mm
Power Supply	DC 5V, 2A
Operation Temperature	-10~60º C
Operation Humidity	0~95%
Storage Temperature	-20~85º C
