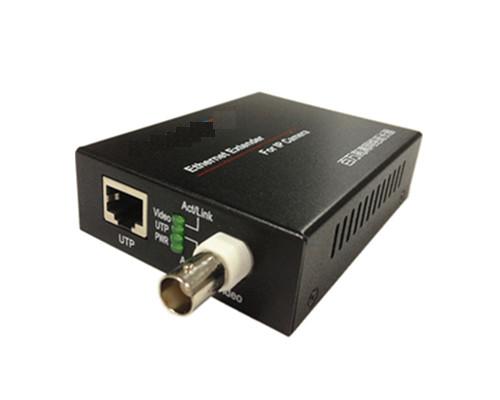

121502. IP Ethernet Extender, BNC to RJ45 Over Coaxial

Nufiber DV801E is the high-performance Ethernet-over-Coaxial extender that converts between twisted pair (UTP) and coaxial cable for every kind of IP Ethernet application. It offers the absolutely fastest data transmission speed over existing coaxial cable without the need of rewiring. On the UTP side, the DV801E uses a modular EIA / TIA 568 RJ-45 connector that supports CAT-5/5e or above wiring with the distance up to 100 meters (328 feet). On the coaxial cable side, the DV801E utilizes a BNC connector that supports 50ohm or 75ohm coaxial cable with the distance up to 3km. It is ideal for extending the distance and signal conversion by transmitting the Ethernet data from the coaxial cable for any type of IP network device such as IP camera, wireless access point, NVR and digital signage.
Features
1, 12~24VDC power supply
2, Support twisted-pair, telephone wire and coaxial cable
3, Transmission distance up to 1500meters
4, Data Isolation communication, strong anti-interference, meet the industrial environment applications
5, Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3X standards
6, Advantage of minimum installation time (Simply as Plug-and-Play)
7, Compact in size, easy installation
Parameter
