170101. XLPE Cable 0.6/1kV

0.6/1kV XLPE Insulated Unarmored Power Cable

YJV CU/XLPE/PVC

ZR-YJV CU/XLPE/FR-PVC

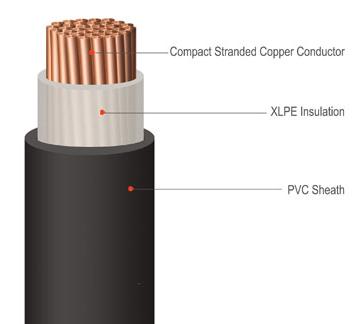

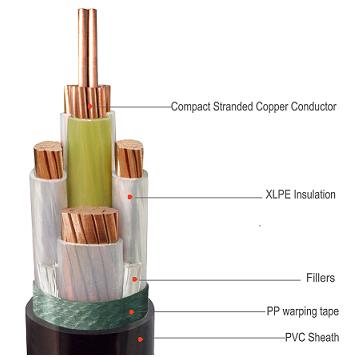

Constructions

Conductor      : Compact stranded copper conductor, Cl.2 as per IEC 60228

Insulation      : XLPE(cross-linked polyethylene) rated at 90℃

Sheath         : PVC or FR-PVC type ST₂ to IEC 60502, black

Code Designation

YJ: XLPE insulation

V: PVC sheath

ZR: Flame resistant

Applications

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards

International: IEC 60502, IEC 60228, (IEC 60332-3 for ZR-YJV only)

China: GB/T 12706, (GB/T 18380-3 for ZR-YJV only)

Other standards such as BS, DIN and ICEA upon request

Technical data

Rated voltage: 0.6 / 1 kV

Maximum Conductor Temperature: under normal (90℃), emergency (130℃) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp.  0℃, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core

                   15 x cable O.D for multi core
