110303. F/FTP Cat6A

F/FTP Cat6A, 4 pairs, PVC/PE/LSOH Jacket ; 4×2×0.575 BC + OD 1.35 Foam PE + Pimf + 0.4 TC + Overall Al + OD 7.4 LSOH; 500Mhz, complied with EN50173,TIA/EIA568C.2, ISO11801

Detailed description

Description:

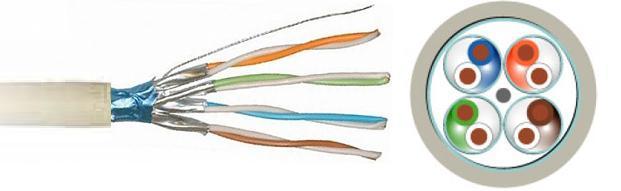

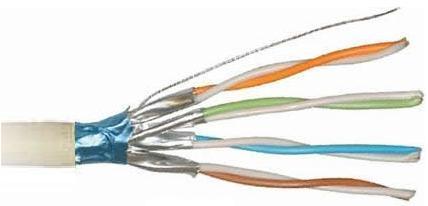

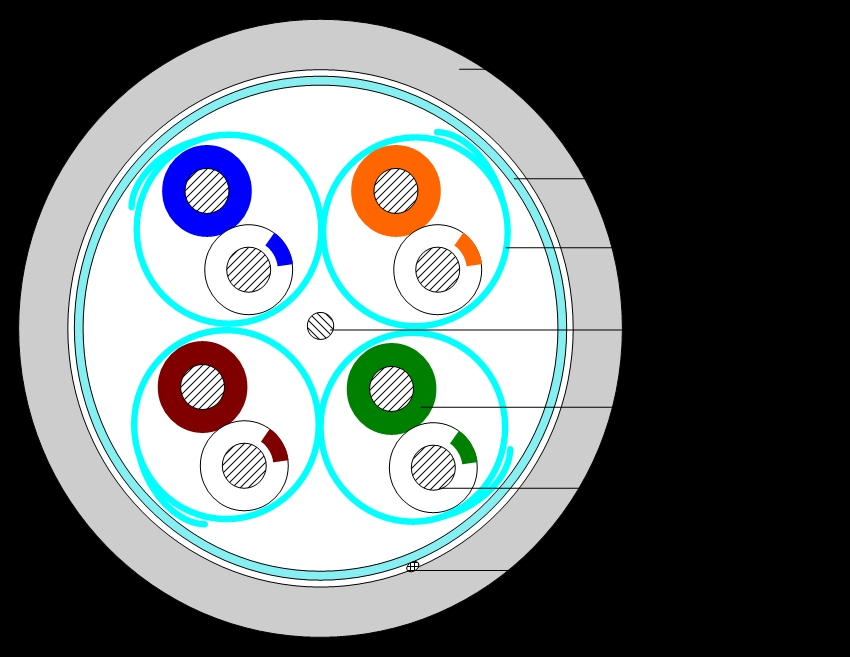

The cable contains 4 individually foil-shielded twisted pairs aluminum, cabled together with a drain wire, overall aluminum-foil shielded and jacketed with FR-PVC compound.

Specifications:

IEC 61156, ISO/IEC 11801, RoHS 2002/95/EC
IEC 60332-1, UL 1581 VW-1

Technical characteristics:

Conductor Material: Bare Copper
Insulation Material: PO
Conductor Size: 0.57 ± 0.01 mm (0.02" ± 0.01 ) (23 AWG)
Outer Jacket Material: FR-PVC
Outer Diameter: 7.4 mm (0.29") nom.
Ind. Shield Material: Aluminum/Polyester Foil
Ind. Shield Design: 100% Coverage
Overall Shield Design: 100% Coverage
Overall Shield Material: Aluminum/Polyester Foil
Overall Drain-wire Material: Tinned Copper
Overall Drain-wire size: 0.41 mm (0.02")
Overall Drain-wire Construction: Solid
Insulation O.D.: 1.35 mm (0.05") nom.
Conductor Construction: Solid
Weight: 53 kg/km

Electrical characteristics

Frequency, MHz

Attenuation, dB

NEXT, dB

PSNEXT, dB

ELFEXT, dB

PSELFEXT, dB

20.0

2.0

74.3

72.3

68.0

65.0

23.0

3.8

65.3

63.3

56.0

53.0

24.5

5.3

60.8

48.8

49.9

46.9

25.0

5.9

59.3

57.3

48.0

45.0

25.0

7.5

56.2

54.2

43.9

40.9

25.0

8.4

54.8

52.8

42.0

39.0

24.3

9.4

53.3

41.3

40.0

37.0

31.25

23.6

105

51.9

49.9

38.1

35.1

62.5

21.5

15.0

47.4

45.4

32.1

29.1

100

20.1

19.1

44.3

42.3

28.0

25.0

200

18.0

27.6

39.8

37.8

22.0

19.0

250

17.3

31.1

38.3

36.3

20.0

17.0

300

16.8

34.3

37.1

35.1

18.5

15.5

500

15.2

45.3

33.8

31.8

14.0

11.0
