S/FTP Cat7A 23AWG LSZH-1200MHz

S/FTP Cat7A, 4 pairs, PVC/LSOH Jacket; 23AWG BC; 1200Mhz, complied with EN50173, IEC 61156, ISO/IEC11801

Detailed description

Description:

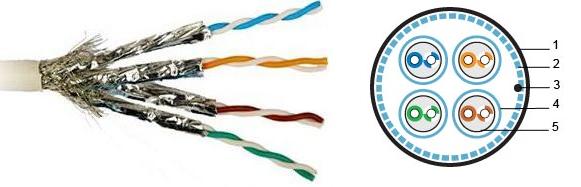

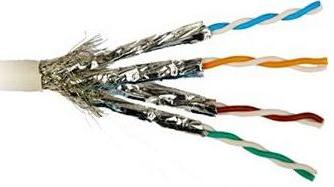

Shielded Copper cable, 4 pairs, category 7A, solid
4 separately foil-shielded pairs
General shield: wire braid
Cable is used for indoor installation

Materials:

Conductive material: wire made of soft annealed electrolytic copper
Conductor insulation: Skin-foam-skin PE
The cable jacket: LSZH (CPR-Eca, Dca, Cca, B2ca)
Shield: every pair is separately shielded with polyester aluminum foil (foil is on the outside), which covers 100% of twisted pair
Braiding shield: 40%AM/40%TC

Technical characteristics:

Conductor diameter: 23 AWG
Outer cable diameter: 7.5±0.3 mm
Operating temperature: -40°C to +70°C (-40°F to +158°F)
Standard package: 305m/500m

Electrical characteristics

Transmission Performance
Frequency	Transfer Impedance	Coupling Attenua-tion	Phase delay	Delay Skew	Attenua-tion	TCL	ELTCTL	NEXT	PSNEXT	ACRF	PS ACRF	PSANEXT	PS AACR-F	Impedance (Ω)		RL
(MHz)	≦mΩ/m	≧dB	≦ns/100m	≦ns/100m	≦dB/100m	≧dB	≧dB	≧dB	≧dB	≧dB/100m	≧dB/100m	≧dB	≧dB	Max.	Min.	≧dB
1	50.0	/	570	45	2.1	40.0	40.0	75.3	72.3	78.0	75.0	80.0	80.0	122	82	20.0
4	75.9	/	552	45	3.7	40.0	28.0	66.3	63.3	67.0	64.0	80.0	80.0	115	87	23.0
8	93.5	/	547	45	5.2	36.5	21.9	61.8	58.8	60.9	57.9	80.0	80.0	113	89	24.5
10	100.0	/	545	45	5.8	35.0	20.0	60.3	57.3	59.0	56.0	80.0	80.0	112	89	25.0
16	134.5	/	543	45	7.3	31.9	15.9	57.2	54.2	54.9	51.9	80.0	78.1	112	89	25.0
20	154.8	/	542	45	8.2	30.5	14.0	55.8	52.8	53.0	50.0	80.0	76.2	112	89	25.0
25	178.2	/	541	45	9.2	29.0	12.0	54.3	51.3	51.0	48.0	80.0	74.2	112	89	25.0
30	200.0	55.0	541	45	10.1	27.8	10.5	53.1	50.1	49.5	46.5	80.0	72.7	112	89	25.0
31.25	211.2	55.0	540	45	10.3	27.6	10.1	52.9	49.9	49.1	46.1	80.0	72.3	112	89	25.0
62.5	533.6	55.0	539	45	14.6	23.1	5.0	48.4	45.4	43.1	40.1	80.0	66.3	112	89	23.6
100	1000.1	55.0	538	45	18.5	20.0	5.0	45.3	42.3	39.0	36.0	80.0	62.2	114	88	22.2
200	/	49.0	537	45	26.5	15.5	5.0	40.8	37.8	33.0	30.0	80.0	56.2	117	86	20.1
250	/	47.0	536	45	29.7	14.0	5.0	39.3	36.3	31.0	28.0	80.0	54.2	122	82	19.4
300	/	45.5	536	45	32.7	12.8	5.0	38.1	35.1	29.5	26.5	80.0	52.7	124	81	18.9
400	/	43.0	536	45	38.0	11.0	5.0	36.3	33.3	27.0	24.0	78.5	50.2	126	80	18.0
500	/	41.0	536	45	42.8	9.5	5.0	34.8	31.8	25.0	22.0	77.0	48.2	129	78	17.3
600	/	39.4	535	45	47.1	8.3	5.0	33.6	30.6	23.4	20.4	75.8	46.6	132	76	16.8
1000	/	35.0	535	45	61.9	7.0	5.0	30.3	27.3	19.0	16.0	72.5	42.2	134	75	15.2
1200	/	33.4	535	45	68.4	7.0	5.0	29.1	26.1	17.4	14.4	71.3	40.6	142	70	14.7
