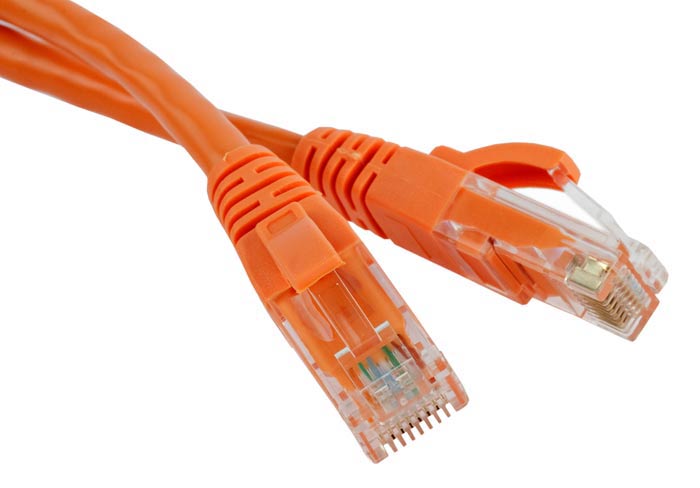

110601. UTP Cat5e Patch Cord

Selected Cat.5e Channel test. High quality Cat.5e unshielded plug Gold plating thickness from 03M to 50U” UL, RoHS certificated cable.

Detailed description

Cable
Conductor: 7 copper wires Ø0.20 mm (0.008"), 24 AWG
Diameter of insulated conductor: 0.98 ± 0.05 mm (0.039" ± 0.002")
Number of pairs: 4
Color of twisted pairs: blue-white/blue, orange-white/orange, green-white/green, brown-white/brown
Jacket: PVC Ø5.5 ± 0.2 mm (0.22" ± 0.008")

Plugs
2 pieces RJ-45 8P8C
Contact: 1.27 micron (50 microinches) gold plated copper alloy
Latch guard Material: PVC

Ordering

U5E-RJ45-3U-0.5M-XX	Crossover patch cord UTP, category 5e, 0.5 m (1.64 ft), standard plug, 8 colours
U5E-RJ45-3U-1M-XX	Crossover patch cord UTP, category 5e, 1 m (3.28 ft), standard plug, 8 colours
U5E-RJ45-3U-2M-XX	Crossover patch cord UTP, category 5e, 2 m (6.56 ft), standard plug, 8 colours
U5E-RJ45-3U-3M-XX	Crossover patch cord UTP, category 5e, 3 m (9.84 ft), standard plug, 8 colours
U5E-RJ45-3U-5M-XX	Crossover patch cord UTP, category 5e, 5 m (16.4 ft), standard plug, 8 colours
U5E-RJ45-3U-10M-XX	Crossover patch cord UTP, category 5e, 10 m (32.8 ft), standard plug, 8 colours
U5E-RJ45-3U-15M-XX	Crossover patch cord UTP, category 5e, 15 m (49.21 ft), standard plug, 8 colours

Color

PATCH-GY		gray
PATCH-WH		white
PATCH-BL		blue
PATCH-RD		red
PATCH-GN		green
PATCH-YL		yellow
PATCH-BK		black
PATCH-OR		orange
PATCH-PK		pink
