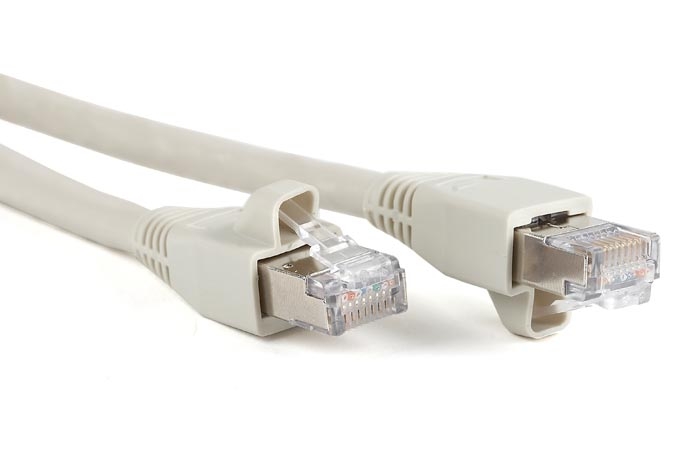

110605. S/STP Cat6A Patch Cord

S/STP Cat6A Patch Cord, 50U Golden plated, LSOH Jacket
Detailed description
Specifications
Meet TIA/EIA-568-B.2-10 category 6a
Meet FCC, Part 68, Subpart F

Cable
Conductor: 7 copper wires, 26 AWG
Insulation: High Density Polyethylene (HDPE)
Number of pairs: 4
Color of twisted pairs: blue-white/blue, orange-white/orange, green-white/green, brown-white/brown
Shield: 2.54 micron (100 microinches) nickel plated brass alloy
Drain wire: 7 wires
Jacket: LSOH Ø 6.35 ± 0.2 mm (0.25" ± 0.008")

Plugs

2 pieces RJ-45 8P8C
Contact: phosphor bronze with 1.27 micron (50 microinches) hard gold plating over 2.54 micron (100 microinches) nickel
Housing: flame retardant PC (polycarbonate) UL 94V-0
Latch guard Material: LSOH

Technical characteristics
Storage temperature: -40°C - +70°C (-40 °F - +158 °F)
Operation temperature: -10°C - +60°C (+14 °F - 140 °F)
Relative humidity: 93% noncondensing
Retention: 50 N for 60±5 s
Insertion/extraction life: 750 min.
Tensile strength: ≥ 20 N per wire
Insulation resistance at 100 VDC: 500 MOhm min.
Dielectric withstand voltage (contact to contact): 1000 VDC or VAC
Dielectric withstand voltage (contact to test panel): 1500 VDC or VAC
Contact resistance: 20 mOhm
Current rating: see the diagramm

Ordering
SS6A-RJ45-50U-1M-GY Patch cord S/STP, category 6a, 10G, 1m (3.28 ft), grey
SS6A-RJ45-50U-1.5M-GY Patch cord S/STP, category 6a, 10G, 1.5 m (4.92 ft), grey
SS6A-RJ45-50U-2M-GY Patch cord S/STP, category 6a, 10G, 2 m (6.56 ft), grey
SS6A-RJ45-50U-3M-GY Patch cord S/STP, category 6a, 10G, 3 m (9.84 ft), grey
SS6A-RJ45-50U-5M-GY Patch cord S/STP, category 6a, 10G, 5 m (16.4 ft), grey
SS6A-RJ45-50U-10M-GY
Patch cord S/STP, category 6a, 10G, 10 m (32.8 ft), grey

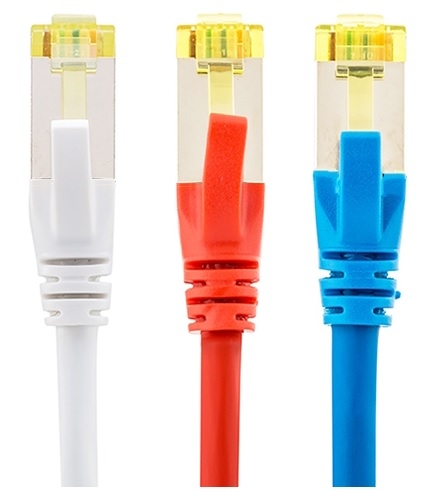

Color
PATCH-GY   gray
PATCH-WH   white
PATCH-BL   blue
PATCH-RD   red
PATCH-GN   green
PATCH-YL    yellow
PATCH-BK   black
PATCH-OR   orange
PATCH-PK   pink
