110917. Australia CAT6 RJ45 8p8c UTP Unshielded 180 degree Krone IDC Keystone Jack
  • 110917. Australia CAT6 RJ45 8p8c UTP Unshielded 180 degree Krone IDC Keystone Jack

110917. Australia CAT6 RJ45 8p8c UTP Unshielded 180 degree Krone IDC Keystone Jack

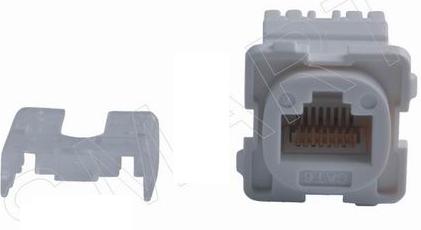

Australia CAT6 RJ45 8p8c UTP Unshielded 180 degree Krone IDC Keystone Jack
Detailed description

Australia CAT.6 RJ45 8p8c UTP Unshielded 180 degree Krone IDC Keystone Jack


Features:

Housing: High-impact Flame Retardant Polycarbonate,UL94V-0

Spring Wire: Phosphor Bronze With Gold-plated 3u-50u
IDC Contact: Phosphor Bronze
Insertion life:≥1000 mating cycles
Operating Temperature Range : -60℃ to 80℃
IDC Accept: 22-26 AWG
Wire Scheme: T568A/B
Insulation Resistance: 500Ω
Current Rating: 1.5Amps
DC Resistance: 0.1 ohm MAX
Voltage: 150 VAC MAX
Plug Retention Force: 89N


Package:
400PCS in a carton
Carton Measurement: L53CM*W32CM*H23
