111101. CAT3 telephone Unshielded 110 IDC 90 degree 6p4c rj11 Keystone Jack
  • 111101. CAT3 telephone Unshielded 110 IDC 90 degree 6p4c rj11 Keystone Jack

111101. CAT3 telephone Unshielded 110 IDC 90 degree 6p4c rj11 Keystone Jack

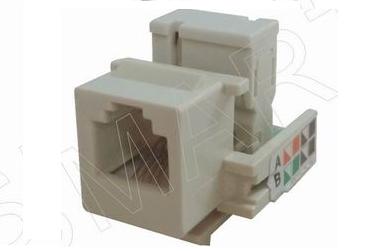

CAT3 telephone Unshielded 110 IDC 90 degree 6p4c rj11 Keystone Jack
Detailed description

CAT.3 telephone Unshielded 110 IDC 90 degree 6p4c rj11 Keystone Jack


Features:

Housing: High-impact Flame Retardant Polycarbonate,UL94V-0
Spring Wire: Phosphor Bronze With Gold-plated 3u-50u
IDC Contact: Phosphor Bronze
Insertion life:≥1000 mating cycles
Operating Temperature Range : -60℃ to 80℃
IDC Accept: 22-26 AWG
Wire Scheme: T568A/B
Insulation Resistance: 500Ω
Current Rating: 1.5Amps
DC Resistance: 0.1 ohm MAX
Voltage: 150 VAC MAX
Plug Retention Force: 89N


Package:
500PCS in a carton
Carton Measurement: L53CM*W32CM*H23
