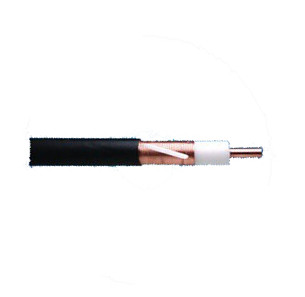

140506. HLCTY(R)-50-22(7/8) RadiatingLeaky

HLCTY(R)-50-22(7/8") RadiatingLeaky

Detailed description

Cable Structure
Inner conductor ø mm	9.0 Smooth CU tube
Insulation ø mm	22.3 Foam PE
Outer conductor ø mm (Overlapping CU foil )	22.7
Outer jacket mm	26.7 PE
Mechanical characteristics
Maximum tension(N)	1440
Single bending radius(mm)	250
Storage temperature(°C)	–55 ～ +80°C
Installation temperature(°C)	–40 ～ +80°C
Electrical characteristics
Characterristic Impedance (Ohm)
100-2500 MHz	50.0
Voltage standing-wave ratio
800-1000 MHz	1.15
1700-2200 MHz	1.20
Peak power(KW)	91.0
Cut-off frequency(Ghz)	5.2
Attenuation constant(dB/100m)
150 MHz	1.80
450 MHz	3.60
900 MHz	5.30
1800 MHz	7.60
2200 MHz	8.60
2400 MHz	9.00
Coupling Loss(50%/95%,2m)
150 MHz	68/80
450 MHz	69/78
900 MHz	63/73
1800 MHz	63/70
2200 MHz	62/70
2400 MHz	61/69
