150105. HDSR 681L
  • 150105. HDSR 681L

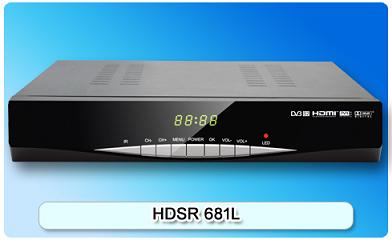

150105. HDSR 681L

HDCP protecition, PVR/media play back, 720, 1080i, 1080p, JPEG, BMP, Parental Control Fully compliant with DVB-S2 and DVB-S(MPEG2/MPEG4/H.264); USB2.0 for software update/PVR/media play back; Full HD output in 720,1080i,1080p; HDCP protection; Multi-lingual OSD and user-friendly UI; Parental Control,Teletext,EPG supported; Favorite Group supported; DiSEqC1.0, 1.1, 1.2, USALS Compatible; Time shift supported with external hard drive disc. Less than 0.5 Watt in standby Support movie files with MPEG1/MPEG2/MPEG4/H264/VC-1/MOTION JPEG, so on. Support music files with WMA/MP3/AAC(.wma/.mp3/.m4a) Suport picture with JPEG, BMP, PNG
Detailed description

Features:

  • HDCP protecition, PVR/media play back, 720, 1080i, 1080p, JPEG, BMP, Parental Control
  • Fully compliant with DVB-S2 and DVB-S(MPEG2/MPEG4/H.264)
  • USB2.0 for software update/PVR/media play back
  • Full HD output in 720,1080i,1080p
  • HDCP protection
  • Multi-lingual OSD and user-friendly UI
  • Parental Control,Teletext,EPG supported
  • Favorite Group supported
  • DiSEqC1.0, 1.1, 1.2, USALS Compatible
  • Time shift supported with external hard drive disc
  • Less than 0.5 Watt in standby
  • Support movie files with MPEG1/MPEG2/MPEG4/H264/VC-1/MOTION JPEG, so on.
  • Support music files with WMA/MP3/AAC(.wma/.mp3/.m4a)
  • Suport picture with JPEG, BMP, PNG

Specifications

CPU and Memory

CUP M3510E
DDR2 DDR2 512Mbit(64MByte)
Flash 32Mbit(4MByte)

Tuner

Connector Type F-Female *1 for LNB Input
Input Frequency 950MHz-----2150MHz
Signal Input Level  -65∽-25dBm
Input Impedance 75 Ohm
LNB Power Out 13V/18V, Imax=500mA, overload protection
LNB Waveform Out 0/22kHz switch
Demodulation scheme QPSK/8PSK: 1~55Msps
Code Rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/10 (QPSK) 3/5, 2/3, 3/4, 5/6, 8/9, 9/10(8PSK)
DiSEqC 1.0, 1.1, 1.2
FFT 1k,2k,4k,8k normal and extended,16knormal and extended,32k normal and extended
FECE mode 64800 bits, 16200 bits
Guard Interval 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128

Software Function

EPG Fully support to 7 days Electronic Program Guide(EPG)
Video Decoding MPEG1, MPEG2,MPEG4,  H264
Video Format avi, mp4, mkv, mov, dat, flv, mpg, vob, 3gp, ts
Audio  Decoding MPEG1-L1L/2/L3, wma
Audio Format mp3, wma, ogg, aac
Picture Format JPEG, BMP, PNG
Video Resolution 480i, 480P, 576i, 576P, 720P, 1080i, 1080P
Video Aspect Ratio 4:3(LB/SCAN), 16:9(LB/FIT)
Analog Video System PAL, NTSC
OSD Language 12 kinds of language
LCN Sort Support Logic Channel Number(LCN)
Teletext VBI insertion for Teletext,CC and WSS
Time Shift Support Time Shift

Hardware  Interface

Video Output AV(CVBS, L/R),  HDMI Interface
SPDIF Output 1*Coaxial
USB Interface 1*USB2.0
RS-232 1*RS-232
Physical Size 260mm * 180mm * 41mm
Button POWER, OK, MENU,  CH-, CH+, VOL-, VOL+
Power supply AC Input 100~240V 50Hz, 15WMax
