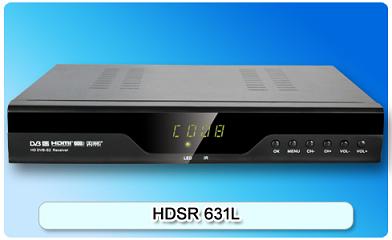

150106. HDSR 631L

HDCP protecition, PVR/media play back, 720, 1080i, 1080p, JPEG, BMP, Parental Control; Fully compliant with DVB-S2 and DVB-S(MPEG2/MPEG4/H.264); USB2.0 for software update/PVR/media play back; Full HD output in 720,1080i,1080p; HDCP protection.

Detailed description

Features:

HDCP protecition, PVR/media play back, 720, 1080i, 1080p, JPEG, BMP, Parental Control
Fully compliant with DVB-S2 and DVB-S(MPEG2/MPEG4/H.264)
USB2.0 for software update/PVR/media play back
Full HD output in 720,1080i,1080p
HDCP protection
Multi-lingual OSD and user-friendly UI
Parental Control,Teletext,EPG supported
Favorite Group supported
DiSEqC1.0, 1.1, 1.2, USALS Compatible
Time shift supported with external hard drive disc
Less than 0.5 Watt in standby
Support movie files with MPEG1/MPEG2/MPEG4/H264/VC-1/MOTION JPEG, so on.
Support music files with WMA/MP3/AAC(.wma/.mp3/.m4a)
Suport picture with JPEG, BMP, PNG

Specifications

CPU and Memory
CUP	M3510E
DDR2	DDR2 512Mbit(64MByte)
Flash	32Mbit(4MByte)
Tuner
Connector Type	F-Female *2 for LNB Input and LOOP
Input Frequency	950MHz-----2150MHz
Signal Input Level	-65∽-25dBm
Input Impedance	75 Ohm
LNB Power Out	13V/18V, Imax=500mA, overload protection
LNB Waveform Out	0/22kHz switch
Demodulation scheme	QPSK/8PSK: 1~55Msps
Code Rate	1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9,9/10 (QPSK) 3/5, 2/3, 3/4, 5/6, 8/9, 9/10(8PSK)
DiSEqC	1.0, 1.1, 1.2
FFT	1k,2k,4k,8k normal and extended,16knormal and extended,32k normal and extended
FECE mode	64800 bits, 16200 bits
Guard Interval	1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
Software Function
EPG	Fully support to 7 days Electronic Program Guide(EPG)
Video Decoding	MPEG1, MPEG2,MPEG4, H264
Video Format	avi, mp4, mkv, mov, dat, flv, mpg, vob, 3gp, ts
Audio Decoding	MPEG1-L1L/2/L3, wma
Audio Format	mp3, wma, ogg, aac
Picture Format	JPEG, BMP, PNG
Video Resolution	480i, 480P, 576i, 576P, 720P, 1080i, 1080P
Video Aspect Ratio	4:3(LB/SCAN), 16:9(LB/FIT)
Analog Video System	PAL, NTSC
OSD Language	12 kinds of language
LCN Sort	Support Logic Channel Number(LCN)
Teletext	VBI insertion for Teletext,CC and WSS
Time Shift	Support Time Shift
Hardware Interface
Video Output	AV(CVBS, L/R), HDMI Interface
SPDIF Output	1*Coaxial
USB Interface	1*USB2.0
RS-232	1*RS-232
Physical Size	260mm * 180mm * 41mm
Button	POWER, OK, MENU, CH-, CH+, VOL-, VOL+
Power supply	AC Input 100~240V 50Hz, 15WMax
