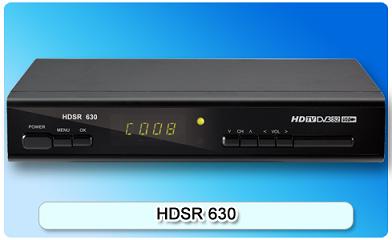

150114. HDSR 630

USB 2.0 for software update/PVR/media play back; Fully compliant with DVB-S and DVB-S2(MPEG 2/MPEG 4/ H.264); Full HD output in 720p, 1080i, 1080p; HDCP protection; Time shift supported with external hard drive disc; Multi-lingual OSD and user-friendly UI.

Detailed description

Features:

USB 2.0 for software update/PVR/media play back
Fully compliant with DVB-S and DVB-S2(MPEG 2/MPEG 4/ H.264)
Full HD output in 720p, 1080i, 1080p
HDCP protection
Time shift supported with external hard drive disc
Multi-lingual OSD and user-friendly UI
Parental Control, Teletext, EPG supported
Favorite Group supported
DiSEqC 1.0, 1.1, 1.2, USALS Compatible
Less than 0.5 Watt in standby

Specifications

DVB-S2 LNB Input/Demodulation
Connector Type	F-Female * 1 for LNB IN ， F-Female * 1 for LOOP OUT
Input Frequency	950MHz-----2150MHz
Signal Input level	-65dBm ∽ -25dBm
Input Impedance	75Ohm
Demodulation Scheme	QPSK/8PSK: 1~55Msps
Signal compatibility	Support conversion for different video formats and frame rates
Data Service Port
Connector	USB
Data Protocol	USB2.0 interface
Power Supply
Power consumption	Max12W
Adapter
AC input	100-240VAC@50/60Hz±5%
DC output	12V 1.5Amax
Memory
Flash	32Mbit
DDRII Memory	512Mbit
Physical Characteristics
Physical Size	220mm * 137mm * 44mm
Front Panel
Key	POWER, MENU,OK,CH+, CH-,VOL+,VOL-
Indicator	LED Indicator for Power On/Off
Remote Control input	Infra-red receiver
Display	Option for 4 Digits 7-segment LED display
Rear Panel
Connector	1 * USB2.0 interface
	1 * SCART or 1 * AV RCA6(YPbPr, CVBS, L/R) (Optical)
	2 * F connector for LNB IN and LOOP OUT
	1 * HDMI 1.3 interface up to 1080p
Remote Specifications
Battery	(AAA 1.5V)*2
Operation Distance	8m Min.（front distance from receiver）
Operation Angle Range	±30°(horizontal)，±20°(vertical)
