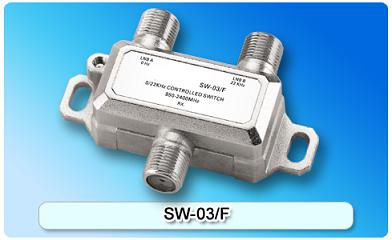

150699. SW-03/F 0/22KHz Switch, 0-22KHz Switch
  • 150699. SW-03/F 0/22KHz Switch, 0-22KHz Switch

150699. SW-03/F 0/22KHz Switch, 0-22KHz Switch

Zinc die-cast housing, nickel-plated; Excellent quality component , professional circuit design and low loss; 0/22KHz signal processed by professional method and compatible with more types of satellite receiver; Select one of two satellite signals through 0/ 22KHz signal supplied from satellite receiver.
Detailed description

Features:

  • Zinc die-cast housing, nickel-plated
  • Excellent quality component , professional circuit design and low loss
  • 0/22KHz signal processed by professional method and compatible with more types of satellite receiver
  • Select one of two satellite signals through 0/ 22KHz signal supplied from satellite receiver
  • Utilize one coaxial cable to transmit control signal and satellite signal simultaneously

Specifications

Item

Specification

Item

Specification

Frequency Range

950-2400(MHz)

Normal Working Voltage

12-20(V)

Insertion Loss

3(dB)

DC Power Consumption

10mA

Isolation

20(dB)

DC Max Power Passing

500mA

Return Loss

8(dB)

Impedance(all ports)

75Ω



Connectors:“F” type female
