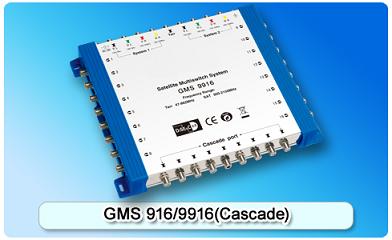

150717. GMS 916/9916(Cascade) 9 in 16 Multiswitch

Suitable for multi-satellite and multi-user system; 8 satellite inputs, 1 terrestrial input; 16 subscriber outputs, cascade and finite multiswitches; Low cascading loss and high isolation; Feed from Quattro-LNB or Quad-LNB thru 22KHz generator; SAT IF selected by 13/18V, 22KHz and DiSEqC 2.0 commands.
Detailed description

Features:

  • Suitable for multi-satellite and multi-user system
  • 8 satellite inputs, 1 terrestrial input
  • 16 subscriber outputs, cascade and finite multiswitches
  • Low cascading loss and high isolation
  • Feed from Quattro-LNB or Quad-LNB thru 22KHz generator
  • SAT IF selected by 13/18V, 22KHz and DiSEqC 2.0 commands
  • Professional design, exquisite appearance and convenient installation

Specifications

Model

GMS 916/9916(Cascade)

Inputs

SAT

8

Terr

1

Subscriber Outputs

16

Frequency (MHz)

SAT

950-2150

Terr

47-862

Trunk Loss(dB)
(Cascade)

SAT

7

Terr

5

Tap Loss(dB)

SAT

2dB±1

Terr

7dB±1

Return Loss(dB)

SAT

12

Terr

10

Isolation(dB)

LNB-LNB

35

Terr-SAT

30

SAT-Terr

35

H/V

30

Switching Voltage

15±1V

Switching Commands

DiSEqC 2.0

Power Supply

DC:18V 1.8A
