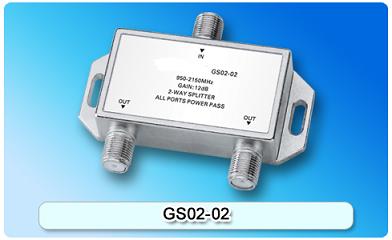

150807. GS02-02 SAT 2-Way Amplifier Splitter

Zinc die-cast housing, nickel-plated; Easy installation with two edge hole sites; Screening factor: 950-2150MHz≥100dB; Suitable for SATV; Power passing-24V 0.8A(MAX.); All ports F-(f)connector,75Ohm.

Detailed description

Features:

Zinc die-cast housing, nickel-plated
Easy installation with two edge hole sites
Screening factor: 950-2150MHz≥100dB
Suitable for SATV
Power passing-24V 0.8A(MAX.)
All ports F-(f)connector,75Ohm

Specifications

Frequency Range (MHz)	Gain(dB)	Return Loss(dB)	Noise Figure(dB)
950-1750	≥12	≥10	≤5
1750-2150	≥12	≥10	≤5
