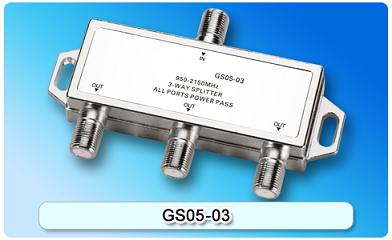

150823. GS05-03 SAT 3-Way Splitter

Zinc die-cast housing, nickel-plated; Easy installation with two edge hole sites; Screening factor: 950-2150 MHz≥100dB; Low insertion loss, high isolation, perfect performance index; Indoor using; Power passing-24V 0.8A(MAX.).

Detailed description

Features:

Zinc die-cast housing, nickel-plated
Easy installation with two edge hole sites
Screening factor: 950-2150 MHz≥100dB
Low insertion loss, high isolation, perfect performance index
Indoor using
Power passing-24V 0.8A(MAX.)
All ports F-(f) connector,75Ohm

Specifications

Frequency Range(MHz)	Insertion Loss(dB)	Mutual Isolation(dB)	Return Loss(dB)
950-1750	≤ 9.5	≥20	≥12
1750-2400	≤ 10.5	≥20	≥10
