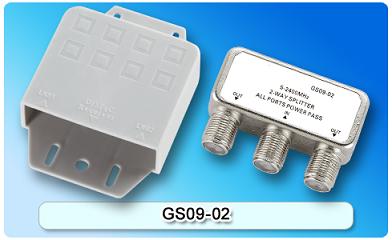

150843. GS09-02 SAT 2-Way Splitter

Zinc die-cast housing, tin-plated; Light weight and compact size; Easy installation with two edge hole sites; Screening factor: 5-2400MHz≥100dB; Low insertion loss, high isolation, perfect performance index; Designed for SATV/CATV.

Detailed description

Features:

Zinc die-cast housing, tin-plated
Light weight and compact size
Easy installation with two edge hole sites
Screening factor: 5-2400MHz≥100dB
Low insertion loss, high isolation, perfect performance index
Designed for SATV/CATV
Power passing-24V 0.8A(MAX.)
All ports F-(f)connector,75Ohm

Specifications

Frequency Range (MHz)	Insertion Loss(dB)	Mutual Isolation(dB)	Return Loss(dB)
5-40	≤3.5	≥14	≥10
40-1000	≤3.8	≥22	≥12
1000-1750	≤4.0	≥20	≥12
1750-2400	≤4.5	≥20	≥10
