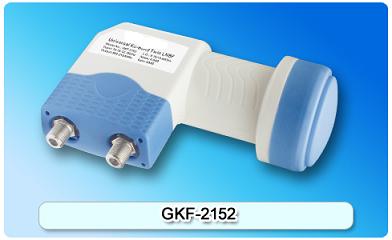

151021. GKF-2152 Universal Ku-Band Twin LNBF
Full coverage of Ku-Band for Analog and Digital reception;
Low noise figure;
Easy installation;
Low power consumption;
High quality weather protection.
Detailed description
Features:
- Full coverage of Ku-Band for Analog and Digital reception
- Low noise figure
- Easy installation
- Low power consumption
-
High quality weather protection
Specifications
|
Item |
Specification |
Item |
Specification |
|
Input Frequency Range |
Low Band:10.70~11.70GHz |
L.O. Phase Noise |
-50dBc/Hz@1KHz |
|
Output Frequency Range |
Low Band:950~1950MHz |
Image Rejection | 40dB(Min.) |
| Noise Figure |
Low Band:0.6dB(Typ.) High Band:0.6dB(Typ.) |
Output VSWR |
2.0:1(Max.) |
| Conversion Gain | 60dB(Typ.) | Output Power | 0dBm (Min.)(at 1dB gain compression) |
| Gain Flatness | ±0.5dB/26MHz | Connector Type | 75Ω Female Connector |
| Cross POL. Isolation | 25dB(Typ.) | DC Current Consumption | 180mA (Typ.) |
| L.O. Frequency |
Low Band:9.75GHz High Band:10.60GHz |
Low/High Band Switching |
Low Band: 0 Hz High Band:22KHz±4KHz |
| L.O. Frequency Stability |
±1.0MHz(Max.)@+25℃ ±2.0MHz(Max.)@-30℃~+70℃ |
POL. Switching Voltage |
10.5~14.0 V @VP 16.0~20.0 V @HP |
| Operating Temperature | -30℃~+70℃ |
