STL

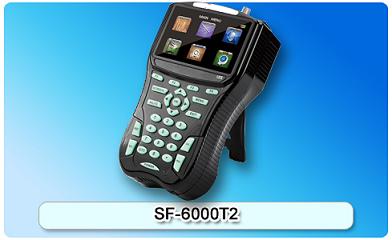

151107. SF-6000T2 Digtal DVB-T2 Finder
Features:
- Spectrum function terrestrial meter
- Real time constellation display
- Full color LCD
- Shortcut key design
- High speed spectrum and search function
-
Support edit manually by on-board keypad
Specifications
| Input Signal | Signal Processing | ||
|
Frequency Range |
170~230MHz(VHF) |
Demodulation Scheme |
QPSK,16QAM,64QAM,256QAM |
|
Signal Level |
-78~-10dBm |
Demodulation Type |
OFDM Spectrum |
|
Impedance |
75Ω |
Bandwidth |
6MHz,7MHz,8MHz |
| Others | Power Supply | ||
|
Dimensions |
200×120×55(mm) |
Power Adapter Input |
AC110V/60Hz/220V/50Hz±10% |
|
Operating Temperature |
0℃ ~ + 40℃ |
DC Power Supply |
DC12V battery |
|
LCD Display |
4.3inch |
Power Charger Input |
AC110V/60Hz/220V/50Hz±10% |
|
Audio Output |
built-in loudspeaker |
Power Charger Output |
12V DC 3A |
|
Input Connector |
IEC type |
Operating Time Of Battery |
Last for 2-3 hours (fully charged) |
|
Charging Hours |
More than 3 hours, |
||
