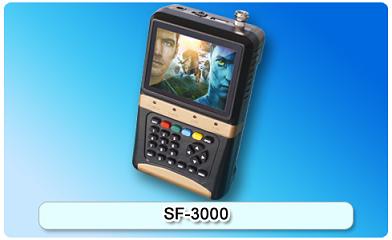

151109. SF-3000 Digtal Satellite Finder
Spectrum analysis function;
Full color LCD;
Support edit manually by on-board keypad;
Built-in rechargeable battery or external power supply;
Can update data and upgrade software through USB port.
Detailed description
Features:
- Spectrum analysis function
- Full color LCD
- Support edit manually by on-board keypad
- Built-in rechargeable battery or external power supply
-
Can update data and upgrade software through USB port
Specifications
| Input signal | Signal processing | ||
| Frequency range | 950MHz~2150MHz | Demodulation |
QPSK |
| Signal level | -25~-65dBm | Symbol rate |
2~45Mbps |
| Impedance | 75Ω | 22KHz tone | Supported |
| DiSEqC 1.0/1.1/1.2 | Supported | ||
| Others | Power supply | ||
| Dimensions | 160×97×47(mm) | Power for LNB | 13V ， 18V,<500mA |
| Operating temperature | 0℃~ +40℃ | DC power supply | DC12.6V battery |
| LCD display | 3.5 inch | Power charger input | AC110V/60Hz/220V/50Hz±10% |
| Audio output | built-in loudspeaker | Power charger output | 12.6V DC 2000mA |
| Input connector | F type | Operating time of battery | Last for 2-3 hours (fully charged) |
