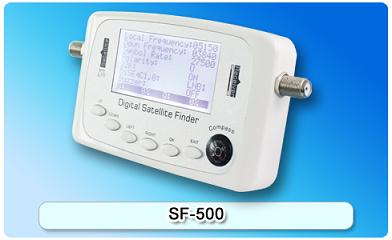

151116. SF-500 Digital Satellite Finder
Support DVB-S2,DVB-S;
Multi standard demodulation & decoding;
LCD display;
Built-in LCD backlight and signal buzzer;
Support 0/22KHz and 13/18V control signals;
Operating Voltage DC12V-20V.
Detailed description
Features:
- Support DVB-S2,DVB-S
- Multi standard demodulation & decoding
- LCD display
- Built-in LCD backlight and signal buzzer
- Support 0/22KHz and 13/18V control signals
-
Operating Voltage DC12V-20V
Specifications
|
Item |
Specification |
Item |
Specification |
|
Frequency Range |
950-2150MHz |
Operating Temperature |
0℃ ~ + 40℃ |
|
Input Level Range |
-65dBm~-25dBm |
Input connector |
F type |
|
Symbol rate |
1 to 45Msps |
Impedance |
75Ω |
|
DiSEqC 1.0 |
Supported |
DC power supply |
DC 12 ~20V |
