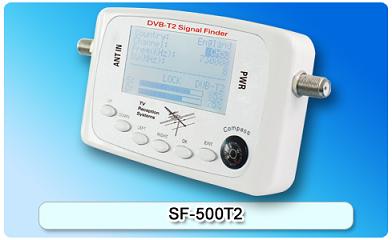

151117. SF-500T2 DVB-T2 Signal Finder

Support DVB-T,DVB-T2; Multi standard demodulation & decoding Use LCD to display the signal strength and quality; Controllable LCD backlight and built-in signal buzzer.

Detailed description

Features:

Support DVB-T,DVB-T2
Multi standard demodulation & decoding
Use LCD to display the signal strength and quality
Controllable LCD backlight and built-in signal buzzer

Specifications

Item	Specification	Item	Specification
Frequency Range	170-230MHz(VHF) 470-862MHz(UHF)	Operating Temperature	0℃ ~ + 40℃
Input Level Range	-78~-10dBm	Input connector	F type
DC power supply	DC 12 ~24V	Impedance	75Ω
