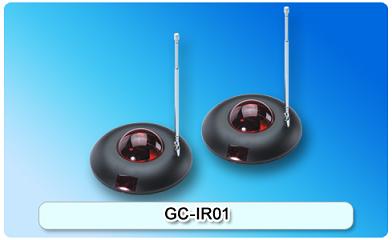

151208. GC-IR01 Wireless IR Remote Extender

Transmit the remote control signal with Radio Frequency; Transmission distance is up to 100 meters under unobstructed circumstance; Extend remote control signal; Low power consumption.

Detailed description

Features:

Transmit the remote control signal with Radio Frequency
Transmission distance is up to 100 meters under unobstructed circumstance
Extend remote control signal
Low power consumption

Specifications

Item	Specification	Item	Specification
Operating Frequency	433.92MHz	Working Voltage	230V-50Hz
Power Consumption	1.8W	Operating Temperature	0℃~+60℃
TRANSMITTER		RECEIVER
Item	Specification	Item	Specification
Transmitter Power	12±1dBm	Receiver Sensitivity	-100dBm
IR Receiving Range	8m（Typical）	Modulation/Demodulation	ASK
DC IN	12V-150mA	DC IN	12V-150mA
