151424. GC-1206 5-1000MHz 6-way Splitter
  • 151424. GC-1206 5-1000MHz 6-way Splitter

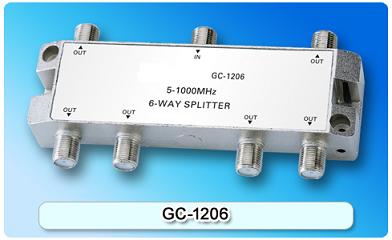

151424. GC-1206 5-1000MHz 6-way Splitter

Zinc die-cast housing, nickel-plated; Easy installation with two edge hole sites; Screening factor:5-1000MHz≥100dB; Low insertion loss,high return loss and isolation; Micro-strip circuit design and perfect performance index; Indoor using.
Detailed description

Features:

  • Zinc die-cast housing, nickel-plated
  • Easy installation with two edge hole sites
  • Screening factor:5-1000MHz≥100dB
  • Low insertion loss,high return loss and isolation
  • Micro-strip circuit design and perfect performance index
  • Indoor using
  • All ports F-(f) connector: 75Ohm

Specifications

Frequency Range (MHz)

Insertion Loss(dB)

Mutual Isolation(dB)

Return Loss(dB)

5-40

≤10.0

≥25

≥20

40-470

≤10.0

≥25

≥20

470-860

≤10.5

≥25

≥18

860-1000

≤11.0

≥22

≥17
