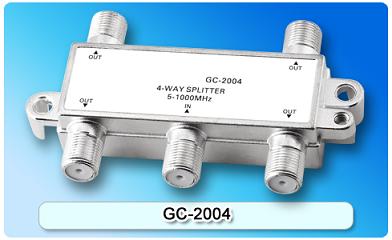

151458. GC-2004 5-1000MHz 4-way Splitter

Zinc die-cast housing, zinc-plated; Light weight and compact size; Easy installation with two edge hole sites; Screening factor: 5-1000MHz≥100dB; Low insertion loss, high isolation, perfect performance index; All ports F-(f)connector,75Ohm.

Detailed description

Features:

Zinc die-cast housing, zinc-plated
Light weight and compact size
Easy installation with two edge hole sites
Screening factor: 5-1000MHz≥100dB
Low insertion loss, high isolation, perfect performance index
All ports F-(f)connector,75Ohm

Specifications

Frequency Range(MHz)	Insertion Loss(dB)	Mutual Isolation(dB)	Return Loss(dB)
5-40	≤7.0	≥27	≥20
40-470	≤7.0	≥30	≥20
470-860	≤7.5	≥30	≥18
860-1000	≤8.2	≥25	≥17
