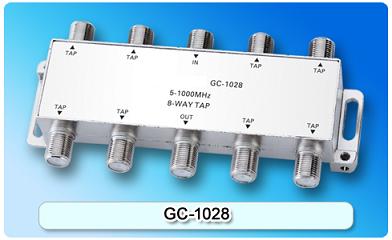

151506. GC-1028 5-1000MHz 8-way Tap
  • 151506. GC-1028 5-1000MHz 8-way Tap

151506. GC-1028 5-1000MHz 8-way Tap

Zinc die-cast housing, nickel-plated; Screening factor: 5-1000MHz≥100dB; Easy installation, capable of passing cable thru housing bottom; Low insertion loss,high return loss and isolation; Micro-strip circuit design and perfect performance index; All ports F-(f)connector,75 Ohm.
Detailed description

Features:

  • Zinc die-cast housing, nickel-plated
  • Screening factor: 5-1000MHz≥100dB
  • Easy installation, capable of passing cable thru housing bottom
  • Low insertion loss,high return loss and isolation
  • Micro-strip circuit design and perfect performance index
  • All ports F-(f)connector,75 Ohm

Specifications

Item

Frequency Range

14

16

18

20

22

24

27

30

Insertion Loss
(dB)

5-40(MHz)

3.5

3.5

2.0

2.0

1.2

1.0

1.0

1.0

40-470(MHz)

3.5

3.5

2.0

2.0

1.2

1.0

1.0

1.0

470-860(MHz)

3.8

3.8

2.2

2.2

1.5

1.2

1.2

1.2

860-1000(MHz)

4.2

4.2

2.5

2.2

1.5

1.2

1.2

1.2

Tap Loss Tolerance
(dB)

5-40(MHz)

±1.0

40-470(MHz)

±1.0

470-860(MHz)

±2.0

860-1000(MHz)

±2.0

Mutual Isolation
(dB)

5-40(MHz)

30

30

28

28

28

28

28

28

40-470(MHz)

25

25

28

28

28

28

28

28

470-860(MHz)

22

22

25

25

25

25

25

25

860-1000(MHz)

22

22

25

25

25

25

25

25

Reverse Isolation
(dB)

5-40(MHz)

30

30

30

30

40

40

40

40

40-470(MHz)

28

25

30

30

40

40

40

40

470-860(MHz)

28

25

28

28

32

32

38

38

860-1000(MHz)

25

25

25

27

28

28

28

28

Return Loss
(dB)

5-40(MHz)

20

20

20

20

20

20

20

20

40-470(MHz)

20

20

20

20

20

20

20

20

470-860(MHz)

18

18

18

18

18

18

18

18

860-1000(MHz)

18

18

18

18

18

18

18

18
