151707. GC-2902 45-1000MHz 2-way Tap
  • 151707. GC-2902 45-1000MHz 2-way Tap

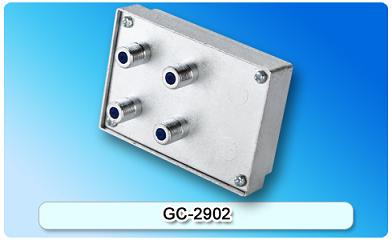

151707. GC-2902 45-1000MHz 2-way Tap

Dedicated for outdoor CATV trunk system and designed with excellent waterproof craft; Zinc die-cast housing, tin-plated; screening factor:45-1000MHz≥100dB; Super-compact size, light weight and easy to attach; All ports F-(f)connector,75 Ohm.
Detailed description

Features:

  • Dedicated for outdoor CATV trunk system and designed with excellent waterproof craft
  • Zinc die-cast housing, tin-plated
  • screening factor:45-1000MHz≥100dB
  • Super-compact size, light weight and easy to attach
  • All ports F-(f)connector,75 Ohm
  • Available to supply 45-1000MHz
  • Power passing IN port to OUT port: 6A AC/DC

Specifications

Item

Frequency Range

8

11

14

17

20

23

27

Insertion Loss
(dB)

40-470(MHz)

3.8

2.8

1.8

1.2

1

1

1

470-860(MHz)

4.2

2.8

2.2

1.8

1.5

1.2

1.2

860-1000(MHz)

4.5

3.2

2.5

2

1.8

1.5

1.5

Tap Loss Tolerance
(dB)

40-470(MHz)

±1.0

470-860(MHz)

±1.5

860-1000(MHz)

±1.5

Mutual Isolation
(dB)

40-470(MHz)

28

28

28

28

28

28

28

470-860(MHz)

25

25

25

25

25

25

25

860-1000(MHz)

25

25

25

25

25

25

25

Reverse Isolation
(dB)

40-470(MHz)

28

28

30

35

35

35

35

470-860(MHz)

28

28

28

28

28

28

28

860-1000(MHz)

25

23

25

25

25

25

25

Return Loss
(dB)

40-470(MHz)

20

20

20

20

20

20

20

470-860(MHz)

18

18

18

18

18

18

18

860-1000(MHz)

18

18

18

18

18

18

18
