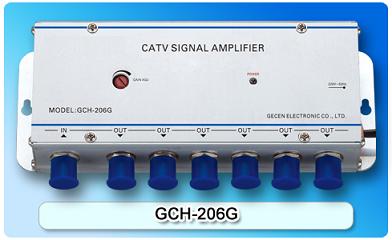

151804. GCH-206G 6-way Splitter Amplifier

Designed for CATV indoor use and meet multi-user; Aluminum die-cast housing, fast heat-sinking With gain adjustable functions manually; All ports F female connector 75Ohm , convenient to use.

Detailed description

Features:

Designed for CATV indoor use and meet multi-user
Aluminum die-cast housing, fast heat-sinking
With gain adjustable functions manually
All ports F female connector 75Ohm , convenient to use

Specifications

Item	Unit	Specification	Item	Unit	Specification
Frequency Range	MHz	45-862	Noise Figure	dB	≤6
Gain	dB	5±3	Power Consumption	W	1
Gain Adjustable Range	dB	0-10	Working Voltage	V	AC175-250
Flatness In Band	dB	±2	Operating Temperature	℃	-40-50
Return Loss	dB	≥16
