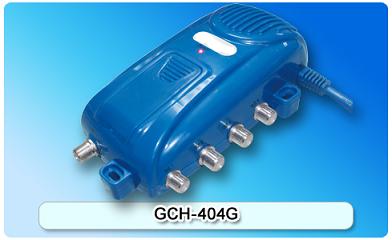

151814. GCH-404G 4-way Splitter Amplifier

Designed for bidirectional amplifier indoor use; With gain adjustable and slope control functions manually; The high quality microwave component design; ALL ports F female connector 75Ohm,convenient to use.

Detailed description

Features:

Designed for bidirectional amplifier indoor use
With gain adjustable and slope control functions manually
The high quality microwave component design
ALL ports F female connector 75Ohm,convenient to use

Specifications

Item	Unit	Specification	Item	Unit	Specification
Frequency Range Forward	MHz	88-862	Frequency Range Return Path	MHz	5-65
Gain Per Port	dB	10	Return Path Gain	dB	7
Gain Adjustable Range	dB	0-10	Slope Control	dB	0-10
Flatness In Band	dB	±1	Return Loss	dB	≥15
Noise Figure	dB	≤6	Max. Output Level	dBuV	88
Power Consumption	W	2	Working Voltage		AC220-230V
Dimension	mm	1417145
