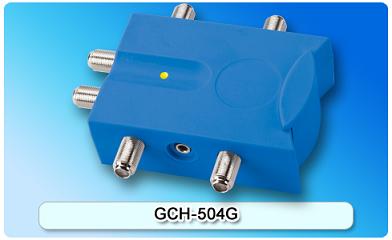

151816. GCH-504G 4-way Splitter Amplifier

Built-in Green LED indictor lights when power on; 2 input/4 outputs Bi-directional amplifier; Main Supply 12VDC/100mA form 12VDC IN or 9VDC/100mA from Input port; The wave with 7.2MHz±500KHz can be transmitted from the one Input to the other.

Detailed description

Features:

Built-in Green LED indictor lights when power on
2 input/4 outputs Bi-directional amplifier
Main Supply 12VDC/100mA form 12VDC IN or 9VDC/100mA from Input port
The wave with 7.2MHz±500KHz can be transmitted from the one Input to the other

Specifications

Item	Unit	Specification	Item	Unit	Specification
Frequency Range Forward	MHz	88-1000	Frequency Range Return Path	MHz	5-30
Gain Per Port	dB	8	Return Path Gain	dB	7
Insertion loss Input1-Input2(at 7.2MHz)	dB	≤6	Power Supply to each output		9±1 VDC/15mA
Flatness In Band	dB	±1.5	Return Loss	dB	≥7
Noise Figure	dB	≤6	Max. Output Level	dBuV	98
Power Consumption	W	2	Working Voltage		Adaptor
