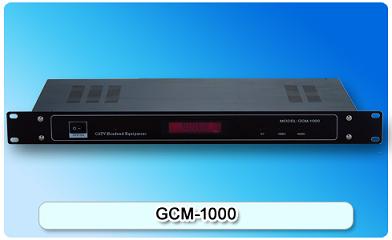

152102. GCM-1000 48.25-300MHz Adjacent modulator

With SAW filter treatmentt, high performance of residual side band and out of band rejection, suitable for adjacent channel system; Audio sub-carrier controlled by PLL, high frequency accuracy and stability; Superior design offering compact , reliable circuit and excellent phase noise index; Video modulation index; A/V carrier ratio; Audio FM deviation; RF output level.

Detailed description

Features:

With SAW filter treatmentt, high performance of residual side band and out of band rejection, suitable for adjacent channel system
Audio sub-carrier controlled by PLL, high frequency accuracy and stability
Superior design offering compact , reliable circuit and excellent phase noise index
Video modulation index; A/V carrier ratio; Audio FM deviation; RF output level are adjustable individually
Suitable for 19〞standard rack mounting, with rear panel AC outlet for cascade usage

Specifications

Item	Unit	Specification	Item	Unit	Specification
Output Frequency Range	MHz	48.25～300	Differential Gain	%	≤3
Output Level MAX	dBuV	113	Differential Phase	。	≤3
Output Level Adjusting Range	dB	20	C/L Delay	nS	≤35
Spurious Rejection	dB	60	Audio FM Deviation	KHz	±50
Video Carrier Accaracy	KHz	±5	Audio in-band Frequency Response	dB	≤1.5
Output Impedance	Ohm	75	A/V Carrier Ratio	dB	-10～30
Output Return Loss	dB	14	Audio S/N	dB	≥57
Video Modulation	%	87.5	Power Supply	V.AC	220±10%
Video Frequency Response	dB	≤2.0	Operating Temperation	℃	0～40
Video S/N	dB	50
