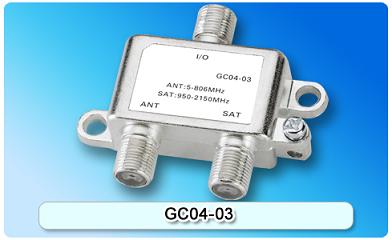

152306. GC04-03 SAT/ANT Diplexer
Zinc die-cast housing,tin-plated;
Light weight and compact size;
Frequency range:5-2150MHz;
F-female connector 75Ohm;
DC power passing: 24VDC 500mA (MAX.).
Detailed description
Features:
- Zinc die-cast housing,tin-plated
- Light weight and compact size
- Frequency range:5-2150MHz
- F-female connector 75Ohm
-
DC power passing: 24VDC 500mA (MAX.)
Specifications
|
Item |
Frequency Range(MHz) |
Parameter(dB) |
Return Loss(dB) |
|
DTT |
5-806 |
1.5 |
15 |
|
950-2150 |
30 |
||
|
DTH |
5-806 |
30 |
12 |
|
950-2150 |
1.2 |
