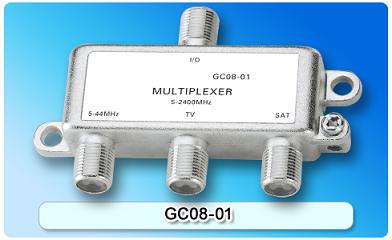

152308. GC08-01 Multiplexer
All ports are F-(f) connectors. 75ohm;
Zinc die-cast housing and SMT(Surface Mount Technology);
Grounding terminal provided;
CE&RoHS approved;
Light weight and compact size.
Detailed description
Features:
- All ports are F-(f) connectors. 75ohm
- Zinc die-cast housing and SMT(Surface Mount Technology)
- Grounding terminal provided
- CE&RoHS approved
-
Light weight and compact size
Specifications
|
Item |
Range(MHz) |
Type |
|
|
Insertion Loss(dB) |
HPNA |
5-44 |
2.0 |
| 54-2150 | 40 | ||
| DTT | 5-44/950-2150 | 30 | |
| 54-806 | 2.0 | ||
|
DTH |
950-2150 | 2.0 | |
|
5-806 |
30 | ||
| Tone Pass | DTH(-----)OUT | ||
| DC Pass | DTH(-----)OUT | pass | |
| Return Loss(dB) | 5-44 | 15 | |
| 54-806 | 12 | ||
| 950-2150 | 10 | ||
