152901. HD-101R HDMI Repeater
  • 152901. HD-101R HDMI Repeater
  • 152901. HD-101R HDMI Repeater

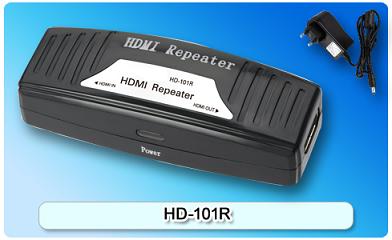

152901. HD-101R HDMI Repeater

Allow to extend the HDMI cable distance, between the HDMI player and HDMI TV set, to 40 meter (35 meter HDMI cable + 5 Meter HDMI cable); Maintain highest HDMI single link video resolution 1080P; Support full HDMI audio and video; HDCP pass-through; Be compliant with HDMI 1.3 specification.
Detailed description

Features:

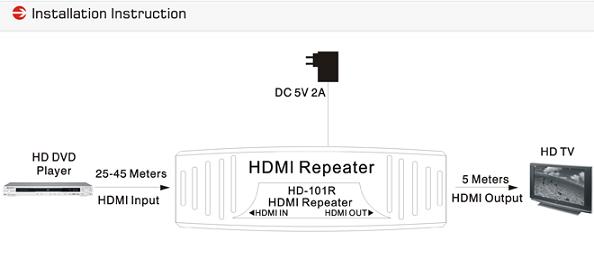

  • Allow to extend the HDMI cable distance, between the HDMI player and HDMI TV set, to 40 meter (35 meter HDMI cable + 5 Meter HDMI cable)
  • Maintain highest HDMI single link video resolution 1080P
  • Support full HDMI audio and video
  • HDCP pass-through
  • Be compliant with HDMI 1.3 specification
  • Support 12bit per channel (36bit all channel) deep color
  • Support uncompressed audio such as LPCM
  • Support 225MHz/2. 25Gbps per channel (6. 75Gbps all channel) bandwidth
  • Plug and play. No software installation required
  • Easy to install and simple to use

Specifications

Item

Specification

Item

Specification

Product

HDMI Repeater HD-101R Frequency Range 25-225MHz
Input Port 1 HDMI signal Vertical Frequency Range 60Hz
Output Port 1 HDMI signal Operation Temperature 0℃ to 70℃
Input Port Connector HDMI 19pin A type Power Adapter 5V 2A
Output Port Connector HDMI 19pin A type Housing Material ABS
HDCP Compliant HDCP Rev 1.2
