153104. ORH-1030M Mini FTTH Optical Receiver
  • 153104. ORH-1030M Mini FTTH Optical Receiver

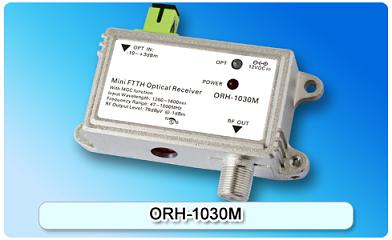

153104. ORH-1030M Mini FTTH Optical Receiver

Designed for FTTH(Fiber To The Home) networks; Excellent linearity and flatness; Wide range of optical input power; Ultra low noise technology.
Detailed description

Features:

  • Designed for FTTH(Fiber To The Home) networks
  • Excellent linearity and flatness
  • Wide range of optical input power
  • Single-mode fiber high return loss
  • Using GaAs amplifier  active devices
  • Ultra low noise technology
  • Smaller size and easier installation
  • Red-LED for power indication
  • Double color LED for optical power indication (Green on: receive power in cover range about -8 to 0 dBm,Red : low <-8dBm or loss signal)
  • With MGC(manual gain control) function

Specifications

Number Item

Unit

Description

Remark

Customer Interface
RF Connector   F5-female
Optical Connector   SC/APC or FC/APC
Power Supply   DC 5.5*2.1
Optical Parameter
Responsivity A/W ≥0.9
Input Optical Power dBm -10~+2
Optical Return Loss dB ≥45
Input Wavelength nm 1260~1600
Optical Fiber Type   Single Mode
RF Parameter
Frequency Range MHz 47-1000
Flatness dB ±0.75
Output Level dBµV ≥78 -1dBm input power
MGC Range dB 0-10
CNR dB ≥50 -1dBm input power
CSO dB ≥65
CTB dB ≥65
Return Loss dB ≥14
Output Impedance Ω 75
Other Parameter
Power Supply VDC 12
Power Consumption W <2
Dimensions mm 77*66*23
