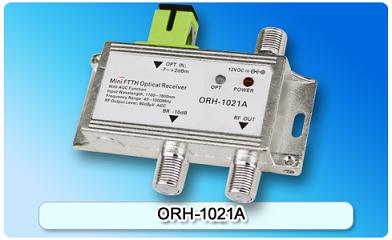

153110. ORH-1021A Mini FTTH Optical Receiver

Designed for FTTH(Fiber To The Home) networks; Excellent linearity and flatness; Forward RF branch output ; Wide range of optical input power; Single-mode fiber high return loss; Using GaAs amplifier active devices.

Detailed description

Features:

Designed for FTTH(Fiber To The Home) networks
Excellent linearity and flatness
Forward RF branch output
Wide range of optical input power
Single-mode fiber high return loss
Using GaAs amplifier active devices
Ultra low noise technology
Smaller size and easier installation
Red-LED for power indication
Double color LED for optical power indication (Non-lighted:optical power<-10dBm,Green:-10dBm<optical power<+3dBm,Red:optical power>+3dBm)
Automatic gain control function is realized by MCU

Specifications

Number Item	Unit	Description	Remark
Customer Interface
RF Connector		F-female
Optical Connector		SC/APC or FC/APC
Power Supply		F-female
Optical Parameter
Responsivity	A/W	≥0.9
Input Optical Power	dBm	-10～+3
Input Optical Power	dBm	-7～+2	AGC
Optical Return Loss	dB	≥45
Input Wavelength	nm	1260～1600
Optical Fiber Type		Single Mode
RF Parameter
Frequency Range	MHz	47-1000
Flatness	dB	±0.75
Output Level	dBµV	≥80	AGC
CNR	dB	≥50	-1dBm input power
CSO	dB	≥62
CTB	dB	≥65
Return Loss	dB	≥16
AGC Stability	dB	±1
Output Impedance	Ω	75
Other Parameter
Power Supply	VDC	12
Power Consumption	W	<2
Dimensions	mm	756317
