130809. Waterproof IR Camera, 30M

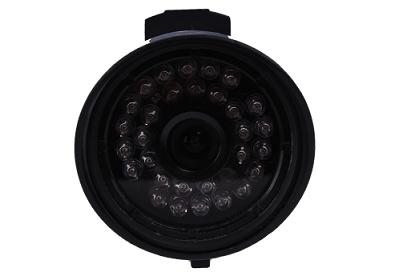

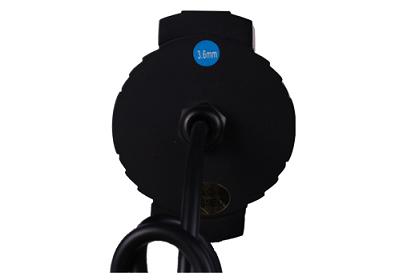

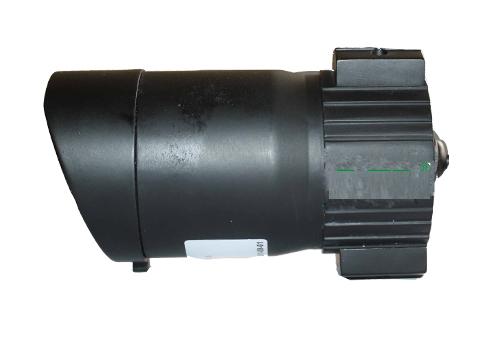

Waterproof IR Camera, 30M
Detailed description
Features
1. 1/3" Sony Super HAD CCD
2. 540 TVL
3. 6mm standard lens
4. Φ5×30PCS IR LED
5. 30m IR distance
Parameters
| Model | DF-980RP | DF-980RN | DF-988RN | DF-985RN |
| Image Sensor | 1/4" Sharp CCD | 1/3" Sony Super HAD CCD | ||
| Pixels(H×V) | P:512(H) ×582(V) N:512(H) ×492(V) | P:500(H) ×582(V) N:510(H) ×492(V) |
P:752(H) ×582(V) N:768(H) ×494(V) |
|
| Scanning System | PAL/NTSC | |||
| Horizontal Resolution | 420 TVL | 480 TVL | 540 TVL | |
| Synchronization | Internal | |||
| Minimum Illumination | 0Lux/F1.2(IR LED ON) | |||
| Backlight Compensation | Automatic | |||
| Electronic Shutter | 1/50(1/60)~1/100,000 Sec. | |||
| White Balance | Automatic | |||
| Lens | Standard Lens 6mm(3.6mm Optional ) | |||
| IR LED | Ø5×30PCS | |||
| IR Wavelength | 850nm | |||
| IR Viewing Range | 30m | |||
| S/N Ratio | ≥48dB | |||
| Gamma Correction | 0.45 | |||
| Video Output | 1.0Vp-p/ 75Ω | |||
| Operation Temperature | -20℃~50℃ | |||
| Power Supply | DC 12V, 1,000mA | |||
| Dimensions (mm) | 120×69×73mm | |||
| Weight (g) | 427g | |||
| IP Grade | IP66 | |||
