130829. Auto Varifocal Waterproof IR Camera

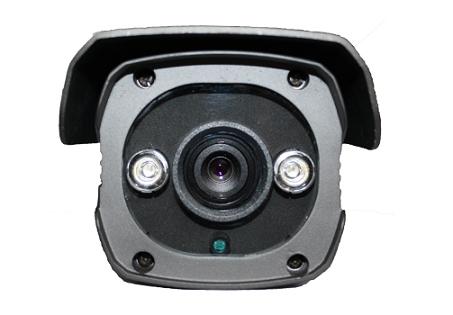

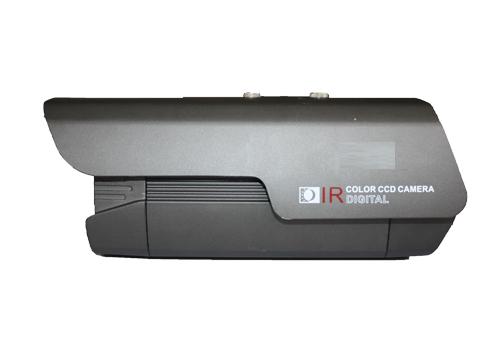

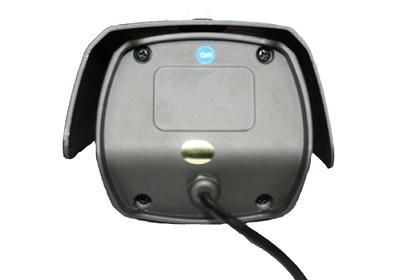

Auto Varifocal Waterproof IR Camera
Detailed description
Features
1. 1/3" Sony Super HAD CCD
2. 650 TVL
3. 12mm lens
4. Single LED array 2PCS, 50m IR distance
5. Wide-dynamic
Parameters
| Model | DF-7548RN | DF-7554RN | DF-7549ZTR | DF-7548WDR |
| Image Sensor | 1/3" Sony Super HAD CCD | |||
| Pixels(H×V) |
P:752(H) ×582(V) N:768(H) ×494(V) |
P:752(H) ×582(V) N:768(H) ×494(V) |
P:960(H) ×582(V) N:976(H) ×494(V) |
P:752(H) ×582(V) N:768(H) ×494(V) |
| Scanning System | PAL/NTSC | |||
| Horizontal Resolution | 480 TVL | 540 TVL | 650 TVL | 600 TVL |
| Synchronization | Internal | |||
| Minimum Illumination | 0Lux/F1.2(IR LED ON) | |||
| Backlight Compensation | Automatic | |||
| Electronic Shutter | 1/50(1/60)~1/100,000 Sec. | |||
| White Balance | Automatic | |||
| Lens | 12mm (8mm Optional ) | |||
| IR LED | Single LED Array 2PCS | |||
| IR Wavelength | 850nm | |||
| IR Viewing Range | 50m | |||
| S/N Ratio | ≥48dB | |||
| Gamma Correction | 0.45 | |||
| Video Output | 1.0Vp-p/ 75Ω | |||
| Operation Temperature | -20℃~50℃ | |||
| Power Supply | DC 12V, 1,000mA | |||
| Dimensions (mm) | 200×100×85mm | |||
| Weight (g) | 1100g | |||
| IP Grade | IP 66 | |||
