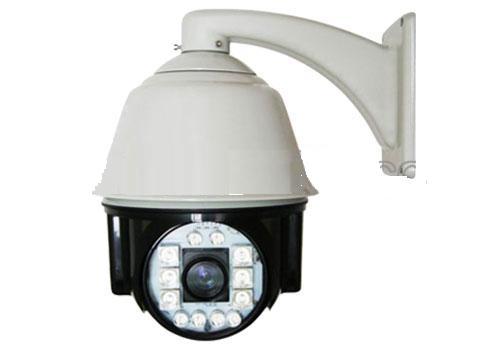

130901. 22X Zoom High Speed Dome Camera

22X Zoom High Speed Dome Camera

Detailed description

Features

● PWM function,intelligent IR illumination & power consumption is variable,dependant the zoom factor

● IR distance 140M;

● 360°continuous rotation,horizontal :80°/s ,Vertical :60°/s ；

● Dome ID, baud rate, communication protocol can be set via the controller

● Supported Protocols : Pelco-D/P; Others on special request.

● Power supply 24-28VAC at 3A,or 12-15VDC at 5A, consumption is less than 20W;

● 7",Double layer metal body construction, waterproof IP 65;

● Optional IP module (built in provision);

● Optional , 4 Alarm inputs and 2 alarm outputs.

Parameters

Model No.	DF-1922RS
Horizontal Resolution	540TVL
Zoom	22X
Horizontal Ratation Speed	0.1°﹀160/S
Tilt Rotation Range	95°
Auto Flip	Horizontal 180°, Vertical 90°
Auto Control IR Led	PWM
A-B Scan	User programmable
A-B Scan Speed	1-9speed setting aiailable
Dwell Preset	1-64 Interval
Presets	220
Go to preset speed	1-64 speed setting available
Guard Tours	3 groups
Guard Points	Max. 16points, dwell time user selectable
Home POS Time	1-255Sec available
Privacy Mask	16-24pcs (according to Zoom module type
Conmunication Protocol	Pelco-d, Pelco-P
Conmunication	RS-485
Baud Rate	1200/2400/4800/9600bps
Operation Temperature	－40°﹀+65°
Operation Humidity	≤95% No Condensation
Power	28V AC-3A 0r 15V DC- 5A
IR Viewing Distance	140M
Compatible Camera	SONY, LG, CNB , SAMSUMG, HITACHI, 1/3CCD CAMERA
IR LED	20mm X 6PS + 16mm X 6PS
