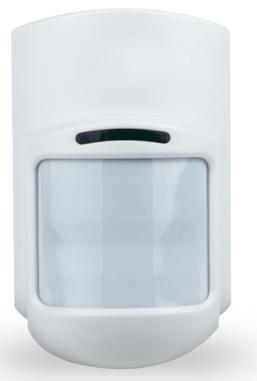

131502. Wireless PIR detector with inner antenna

Model No: Vip-907C

Main feature:

1. With inner antenna

2. Low power indication

3. Automatic temperature compensation

4.SMT adopted, anti-RFI & anti-EMI

5. Low power consumption, long battery life

6. Adjustable detecting distance

Technology parameter:

Operating voltage: 9V battery

Standby current: less than 12uA

Alarm current: less than 15mA

Operating temp.: -10 degree to +50 degrees

Installation mode: wall mounted

Installation height: about 2m

Detecting distance: 9-18m

Detecting angle:110 degrees

Transmitting Freq.: 315MHz or 433MHz

Sending distance: more than 200m( in the open area)
