110201. UTP Cat6

UTP Cat6, 4 pairs, PVC/PE/LSOH Jacket; CM/CMR/CMP grade; 4×2×0.575 BC + OD 1.02 PE + Cross + Rip Cord + OD 6.5 PVC; 250Mhz, complied with EN50173,TIA/EIA568C.2, ISO11801

Detailed description

Description:

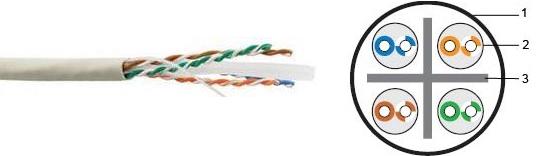

Unshielded Copper cable, 4 pairs, category 6, solid
Application: horizontal wiring in LAN
Cable is used for indoor installation
Meets UL444/UL1581 fire safety standard and TIA/EIA 568A

Technical characteristics:

Conductor: annealed bare copper 0.55±0.01 mm, 23-24 AWG
Insulation: HDPE, minimum average thickness 0.22 mm, minimum thickness at any point 0.21 mm
Insulated conductor diameter: 0.96±0.01 mm
Identification:
   - Blue-White/Blue,
   - Orange-White/Orange,
   - Green-White/Green,
   - Brown-White/Brown
4 twisted pairs with spacer (PE)
Jacket: LSZH, minimum average thickness 0.45 mm, minimum thickness at any point 0.4 mm
Outer cable diameter: 6.2±0.2 mm
Minimum bend radius: 8xO while installation, 6xO while vertical cabling, 4xO while horizontal cabling
Standard package: 21.5x42x42 cm (WxHxD) - 305 m
Weight of cable without package: 12.9 kg
Weight of cable with package: 13.8 kg
Weight per 1 km: 42.3 kg
Rating temp: 75°C
Flame test: CM
Standard: UL444/UL1581, TIA/EIA 568B.2

Electrical characteristics

Frequency, MHz

Attenuation, dB

NEXT, dB

PSNEXT, dB

ELFEXT, dB

PSELFEXT, dB

1.0

20.0

2.4

74.3

72.3

67.8

64.8

4.0

23.0

3.8

65.3

63.3

55.8

52.8

8.0

24.5

5.3

60.8

58.8

49.7

46.7

10.0

25.0

6.0

59.3

57.3

47.8

44.8

16.0

25.0

7.6

56.3

54.3

43.7

40.7

20.0

25.0

8.5

54.8

52.8

41.8

38.8

25.0

24.3

9.5

53.3

51.3

39.8

36.8

31.25

23.6

10.7

51.9

49.9

37.9

34.9

62.5

21.5

15.4

47.4

45.4

31.9

28.9

100.0

20.1

19.8

44.3

41.3

27.8

24.8

200.0

18.0

29.0

39.8

37.8

21.8

18.8

250.0

17.3

32.8

38.3

36.3

19.8

16.8

Conductor resistance at 20°C (68°F)

9.38 Ohm/100 m (2.9 Ohm/100 ft)

DC Resistance Unbalance

Pair-to-Ground Capacitance Unbalance

330 pF/100 m (101 pF/100 ft)

Impedance 0.772-100 MHz

85-115 Ohm

Mutual Capacitance

5.6 nF/m (1.7 nF/ft)

Spark Test

2.5 kV
