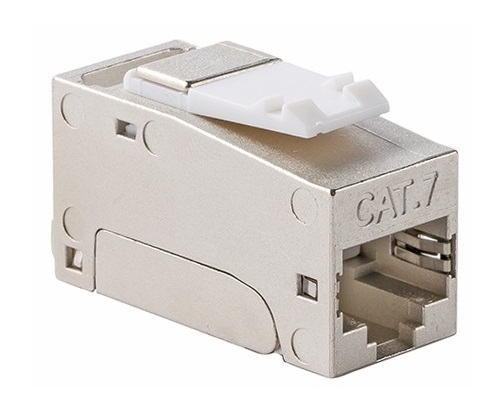

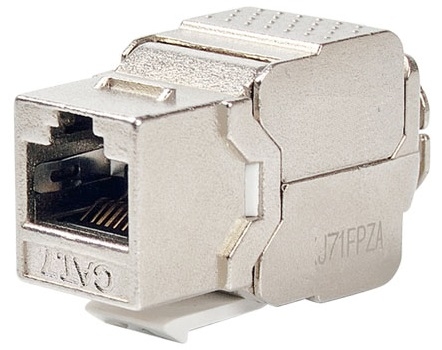

110808.CAT7 Keystone Jack

CAT7 Keystone Jack
Detailed description
Material: zinc alloy shell + phosphor bronze clip + polycarbonate lineup + 50µ gold-plated pin
Structure: 38*15*14MM
Cable release and plug in: ≥750times
Joint: ≥250times
Color: silver
Packaging: polybag, gift box

Product specification
Cat7 zinc alloy keystone jack is used in the structure cabling Cat7 regional network to transfer language, data signal, and support the application of nowadays high broadband. It also can install on the metope information board or stay in the signal box on the desk and on the patch panel, and it can plug in RJ11/RJ45.
Using zinc alloy shell design can effectively reduce the EMI.
Overall the press fit technology, the circuit board without welds, can improve the performance and reduce pollution.
With the patent printed circuit board degaussing technology can effectively reduce the internal crosswalk.
The front stitching is made of 50µ gold-plated technology that has superior performance of antioxidant and contact behavior. It can provide more than 750 times cable release and plug in and promise the stable and faster of data.
High strength polycarbonate lineup and phosphor bronze clip and provide more than 250times joint. It can improve the contact performance, high quality and reduce the loss between keystone jacks to the lowest degree.

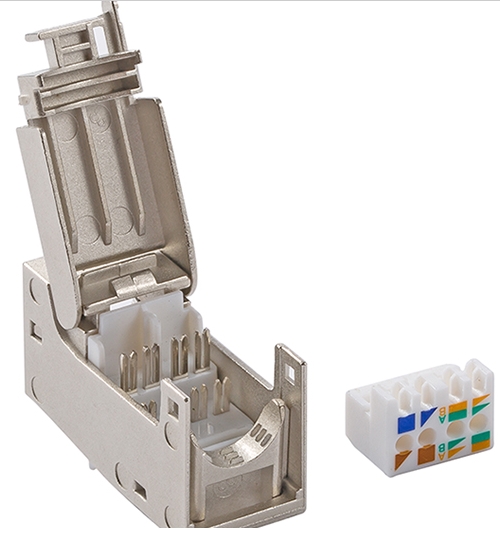

There is a line order color code T568A/T568Boutside the IDC, the design of tool-less is convenient for user to install and check.
Using the high quality flame retardant polycarbonate material conforms to the fire resistance requirement of UL94V-O.
Through CE, FCC, ROHS, ETL, and the Ministry of information industry certification, Connecting Hardware single certification and six point connection Channel test certification, Cat7 zinc alloy keystone jacks.
All the products conform to the F Degree standard of ISO/IEC 11801 and the standard of YD/T926.1-2009 TIA/EIA568C.2.

Product application
Apply to the work area, the concentration of points, management room, and equipment between the subsystems of the application of Cat7 zinc alloy keystone jacks. Wisely be used in the government, bank, hotel, school, factory, community and business building.

Electronic characteristic
Dielectric withstand voltage: 1000V AC RMA, 60Hz 1min
Current rating: 1.5Amp
Insulation resistance: 10MΩ
Contact resistance: 2MΩ
Temperature range: -40℃~ +70℃

Modular connector
RJ45 8pin connector is fit with a part of F subdivision in FCC68 and old C-60603-7.
Durability: plug in/out more than 750 times
Material: zinc alloy, phosphor bronze slip, 50µ gold-plated pin.

IDC connector
IDC connector: accept 22-24AWG conductor
Insulation diameter: 0.70-1.40mm
Material: nickel plating phosphor bronze
Subject and material of IDC: plastic, fireproofing fit to UL 94 V-O
IDC card number line: accept more than 250times

Product characteristic
Using zinc alloy shell design can effectively reduce the EMI. 50µ gold-plated pin, strong oxygen resistance and contact behavior.
High strength polycarbonate lineup and phosphor bronze slip make the superior performance of transfer and contact.
The design of tool-less is more convenient and efficient.
